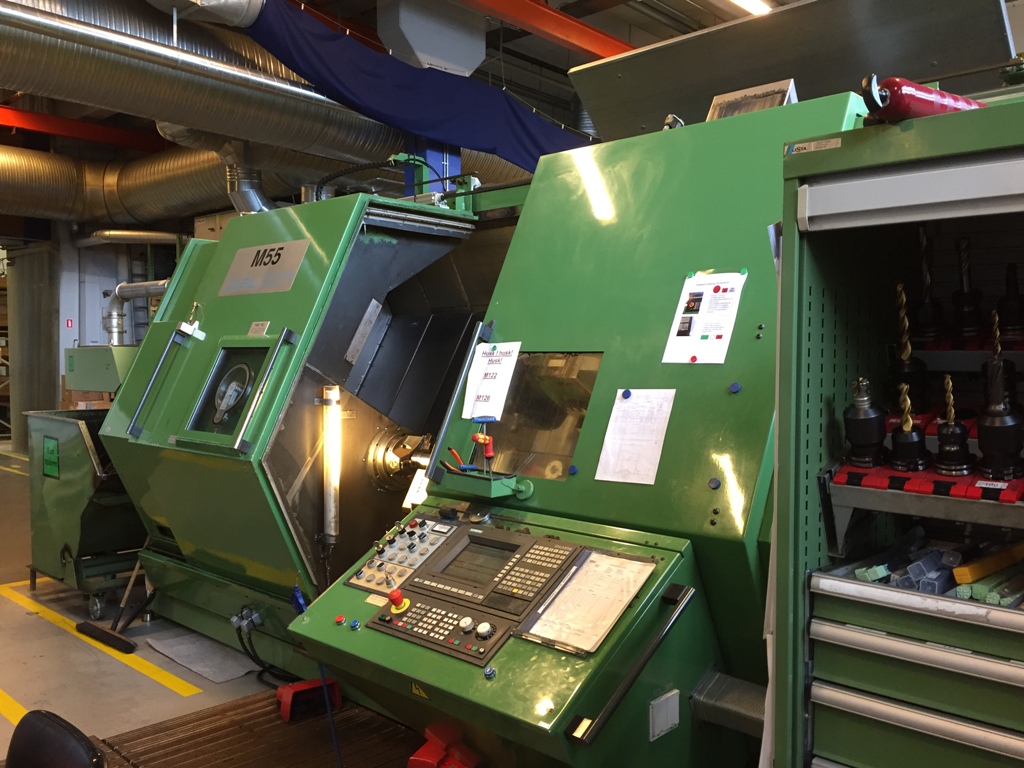

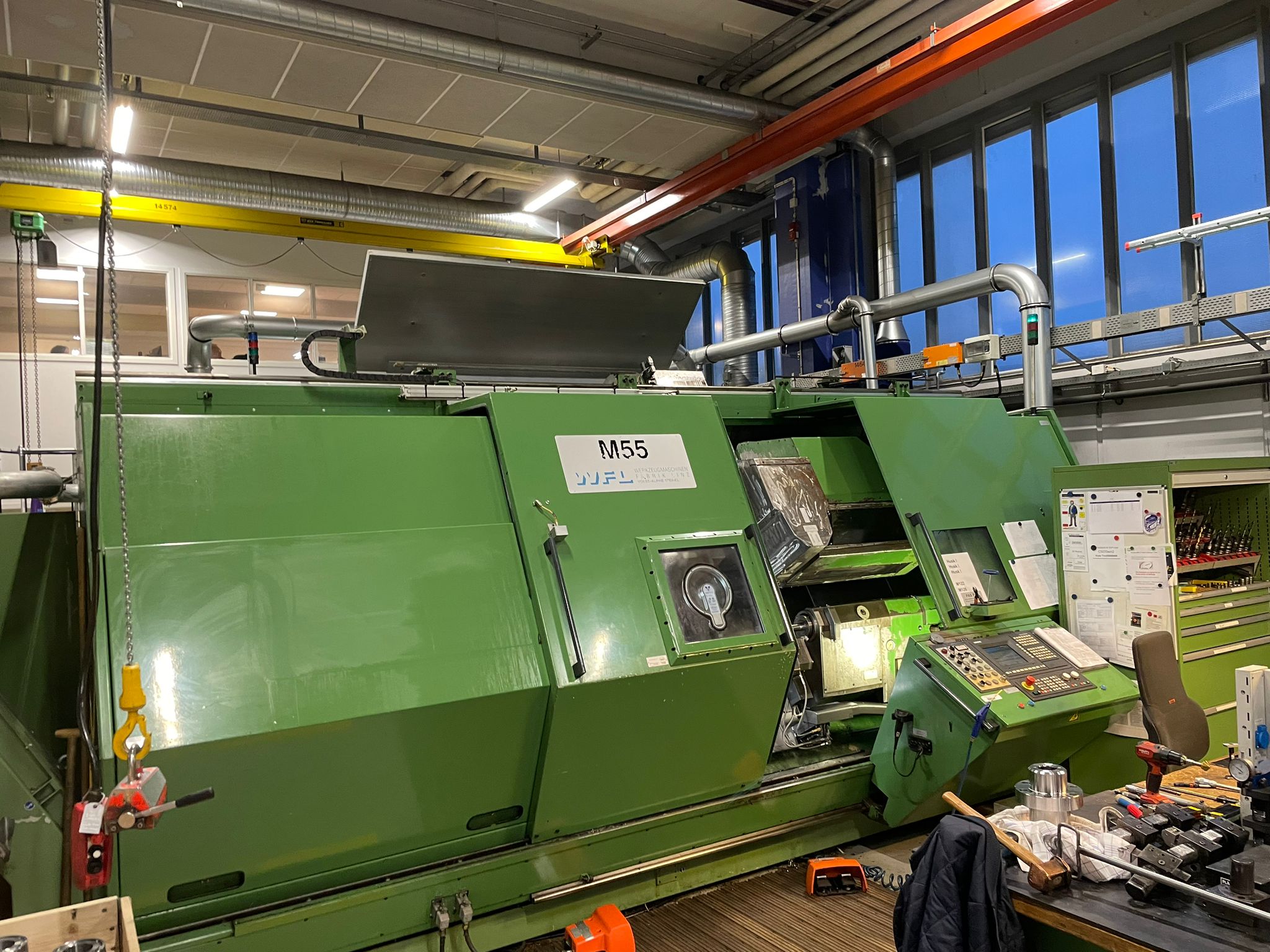

WFL M 55 x 2000
- Machine group:
- CNC LATHE
- Year:
- 1998

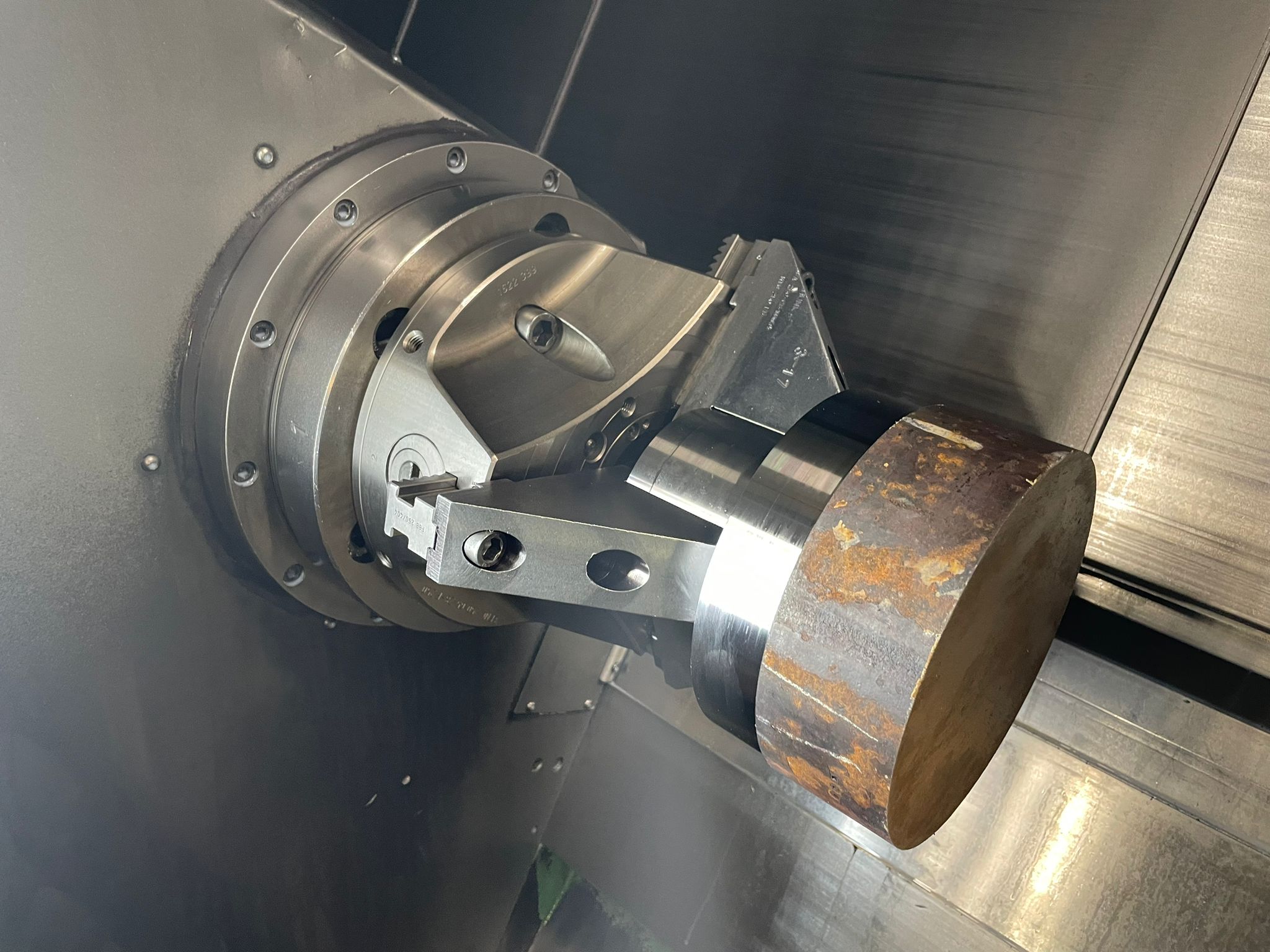

- Hydr. Chuck Mainspindle:
- Forkardt FNC 250-65 mm dia
- Chip conveyor.:
- Kabelschlepp
- Turning Length:
- 2000 mm
- Max. Turning dia o/slide:
- 640 mm dia.
- Swing over turning slide:
- 550 mm dia.
- Max. Turning diameter:
- 460 mm dia.
- Main Spindle speed Range:
- 18.5 - 3150 rpm
- Hydr. Chuck Mainspindle:
- Forkardt FNC 250-65 mm dia
- Main motor power:
- 37 kw
- B axis spindrel rpm.:
- 1-3000 rpm
- C Axis - Mainspindle Stroke:
- 0.001 degree
- Y axis :
- 300 (-130/+70 mm

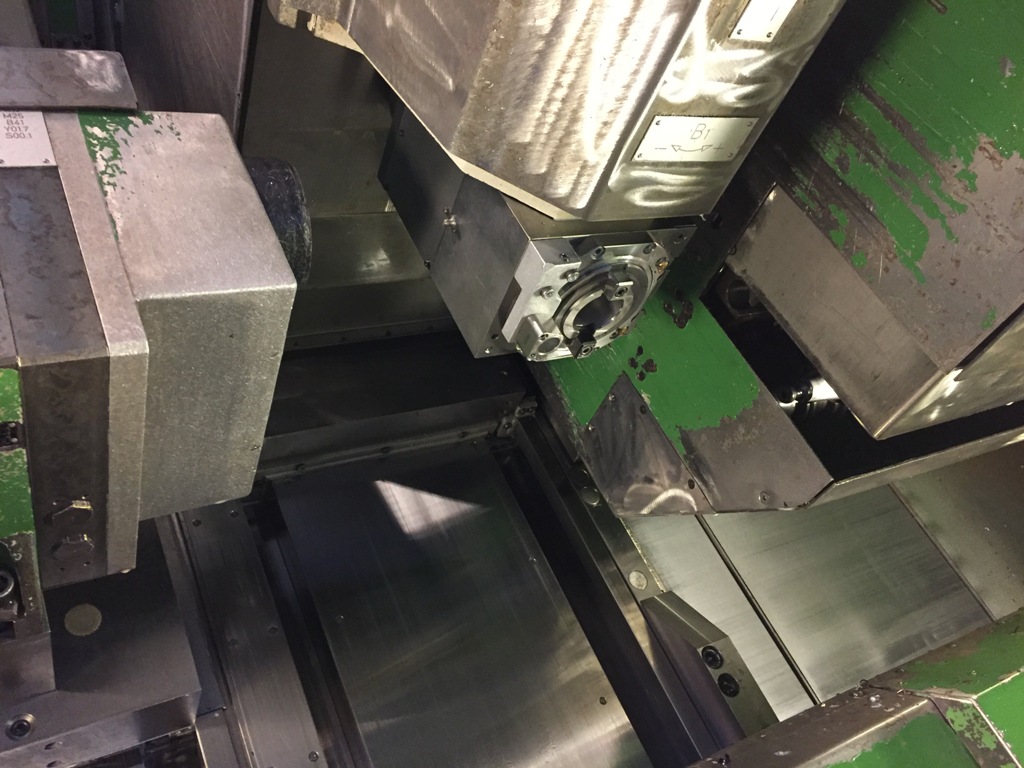

- B axis Stroke:
- 180 degree - 0.001 Degree
- B axis system:
- ISO 40 - 24 Tools

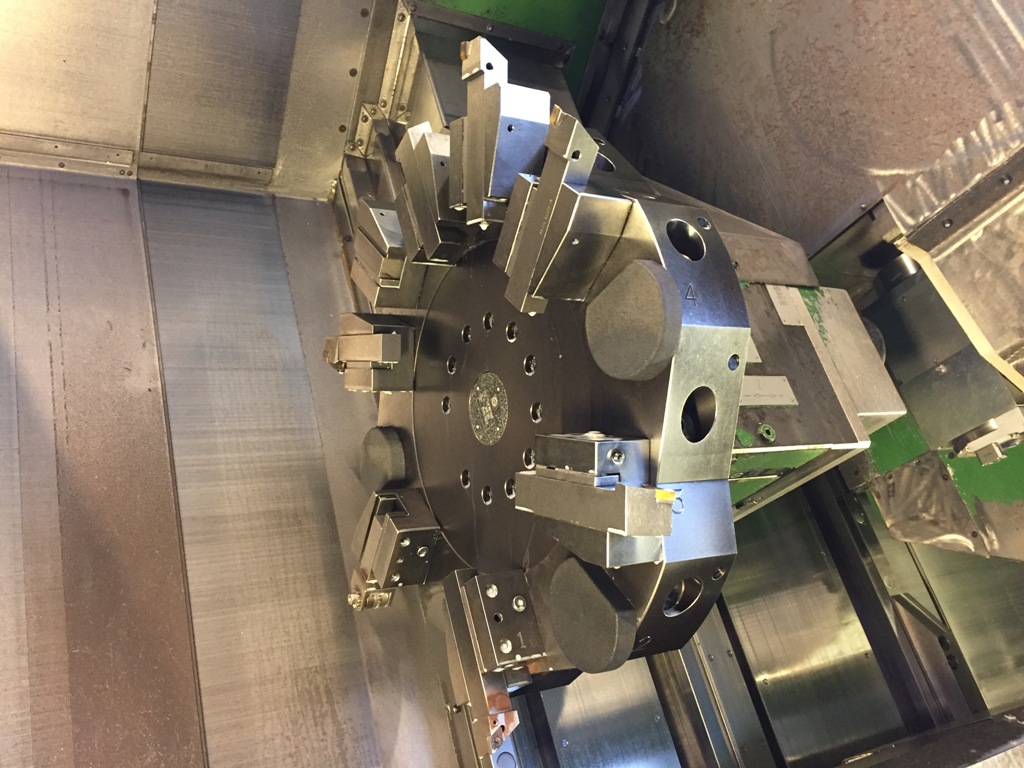

- Turret 1 with :
- 12 VDI 50 Stations
- Hydr. Steady rest:
- Forkardt LZ 12-155
- Weight:
- 15.000 kg
- Length:
- 5700 mm Transport
- Width:
- 2500 mm Transport
- Height:
- 3000 mm
