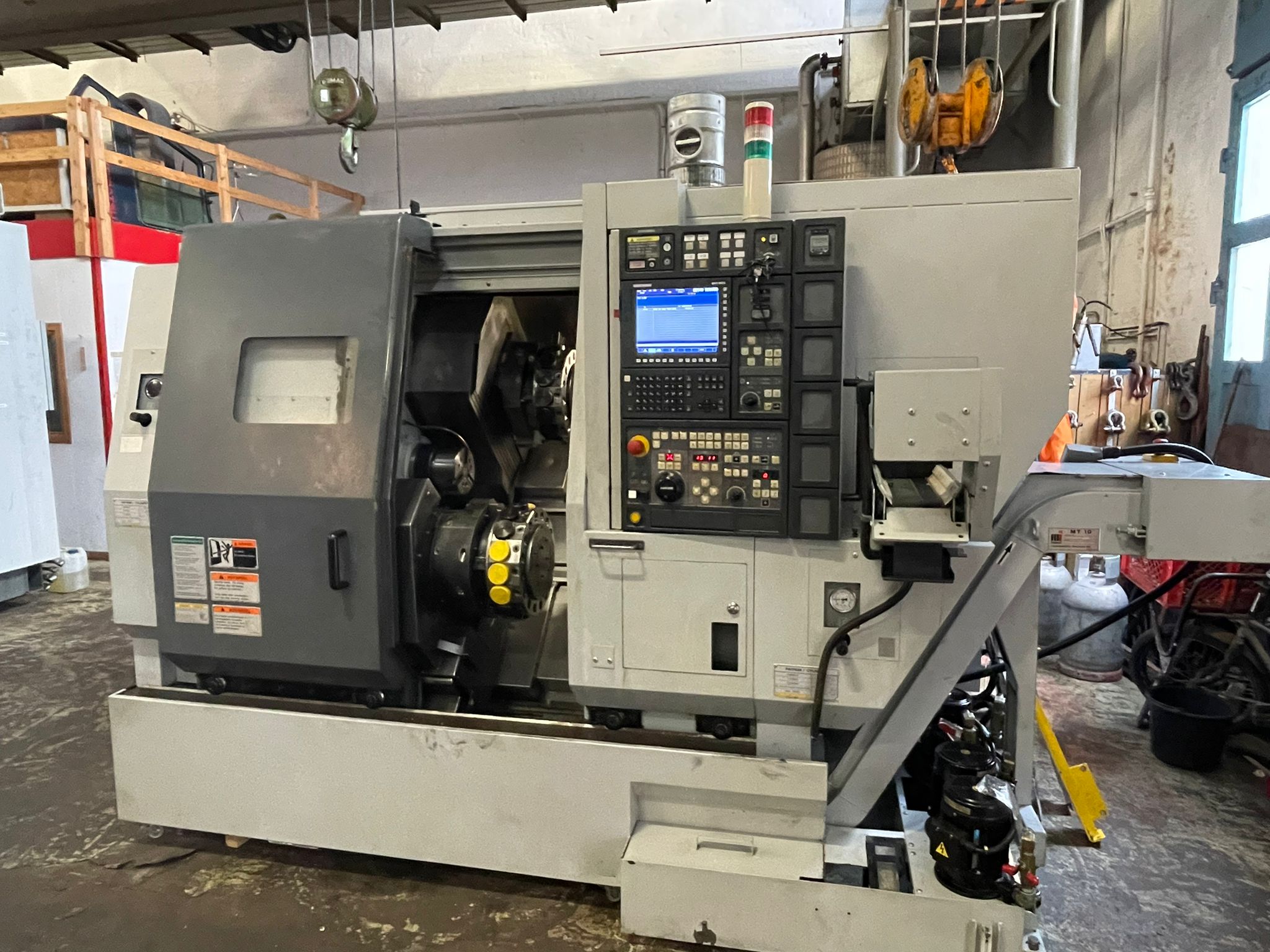

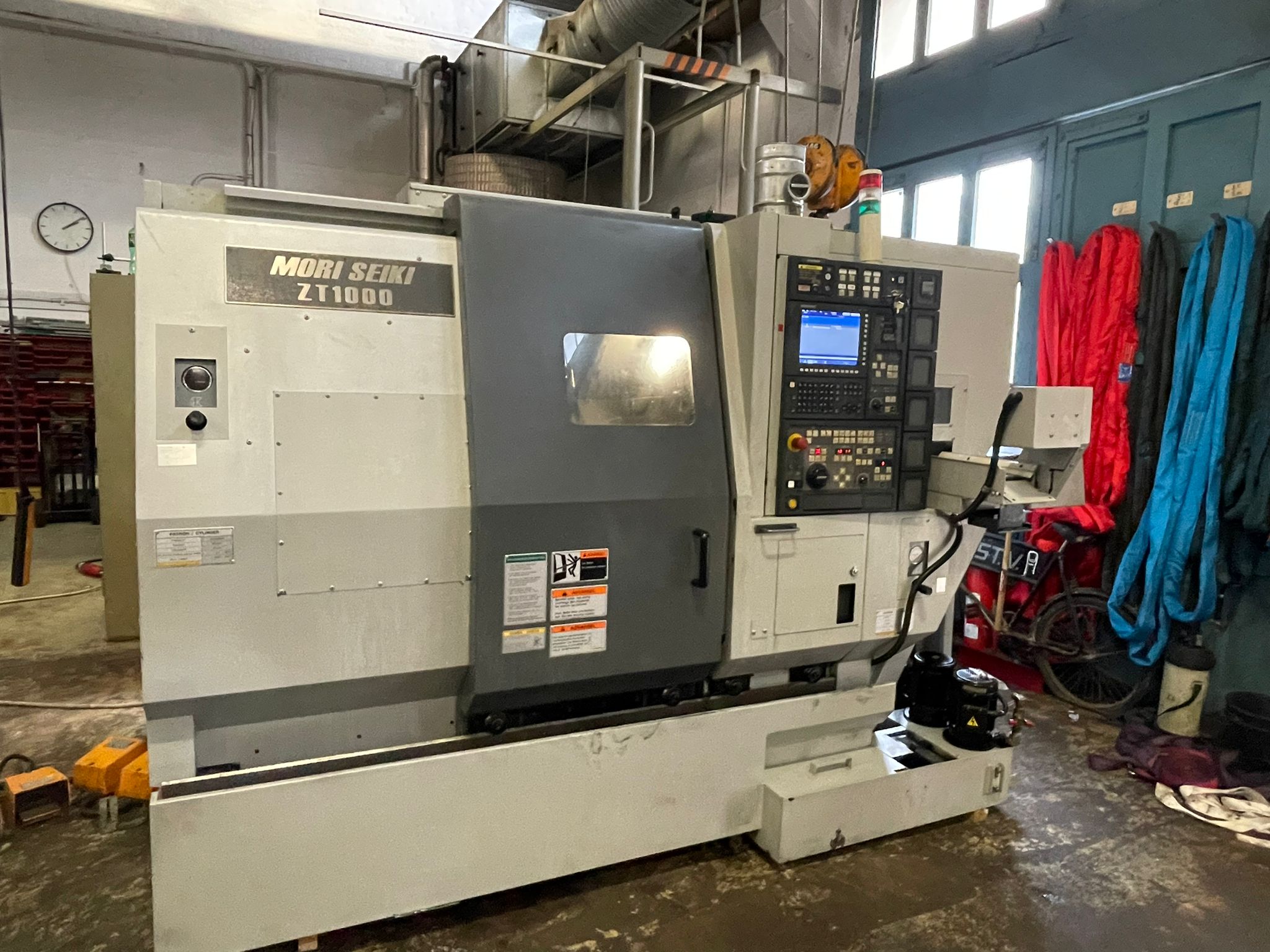

Mori Seiki ZT 1000Y
- Machine group:
- CNC LATHE
- Year:
- 2003
- Max. Turning dia o/slide:
- 250 mm dia.
- Max. Turning diameter:
- 190 mm dia.
- Main Spindle speed Range:
- 6000 rpm
- Sub Spindle Speeds:
- 6000 pr/min
- C Axis:
- 0,001
- Y axis :
- 40+/- mm
- Turret 1 with :
- 16 Stations
- Turret 2 with:
- 16 Stations

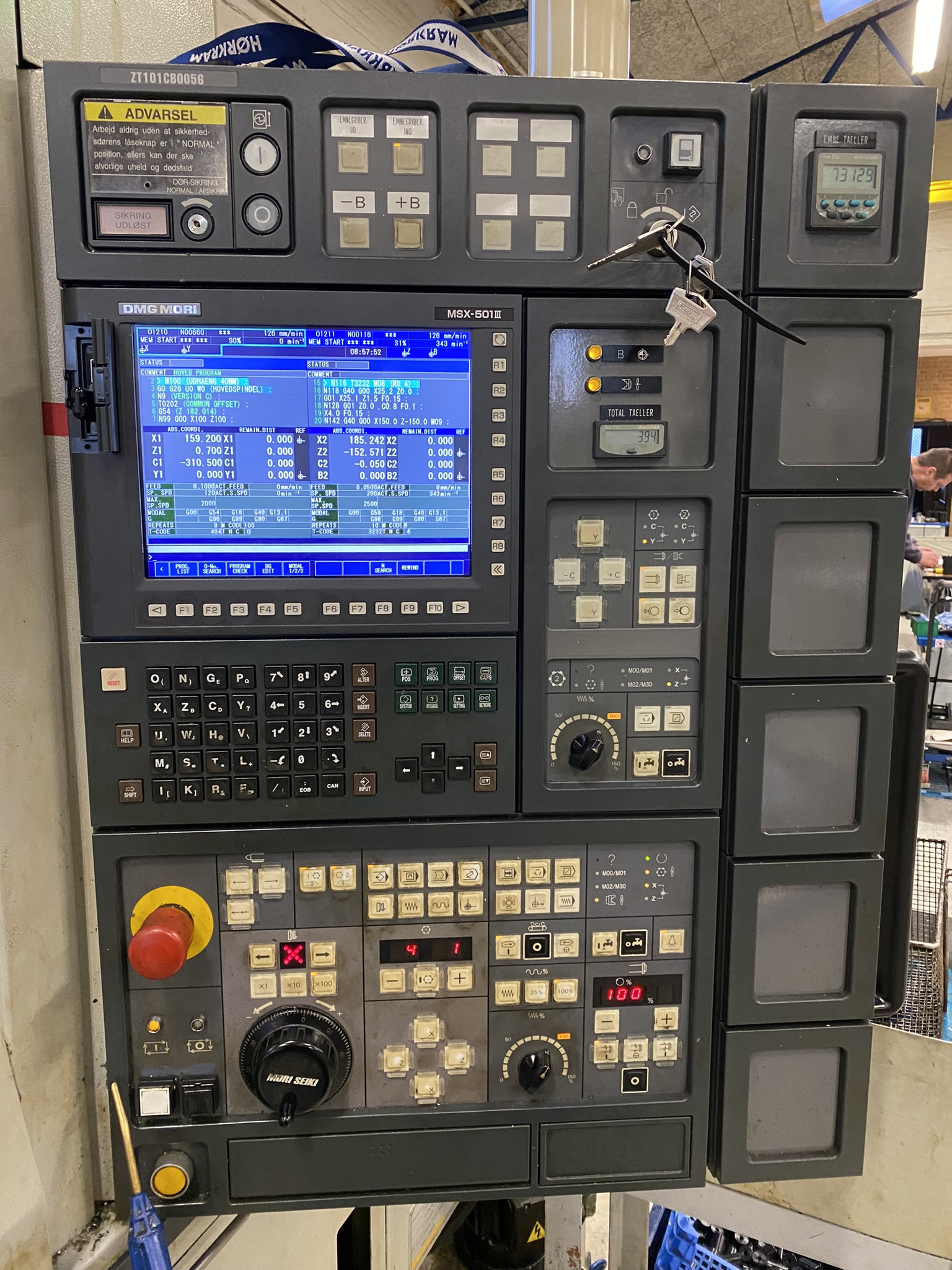

- Control system:
- MSX-501 manuf.
- Live Tooling Spindle speeds:
- 6000 rpm
- Motorpower M spindle:
- 5,5 / 3,7 / 2,2 kW Kw
- Working hours Spindle:
- 5080 Hours
- Power on:
- 15088 Hours
- Z Axis Rapid movement:
- 1/2 - 24 m/min
- Main motor power:
- 22/18,5 kw
- Controlled in :
- 5+2 axis
- Hydr. Chuck Mainspindle:
- 169 mm dia
- Hydr. Chuck Supspindle :
- 169 mm dia
- Live Tooling:
- No
- Boring trough drawing pipe:
- 46 mm dia.
- Weight:
- 5000 Kg
