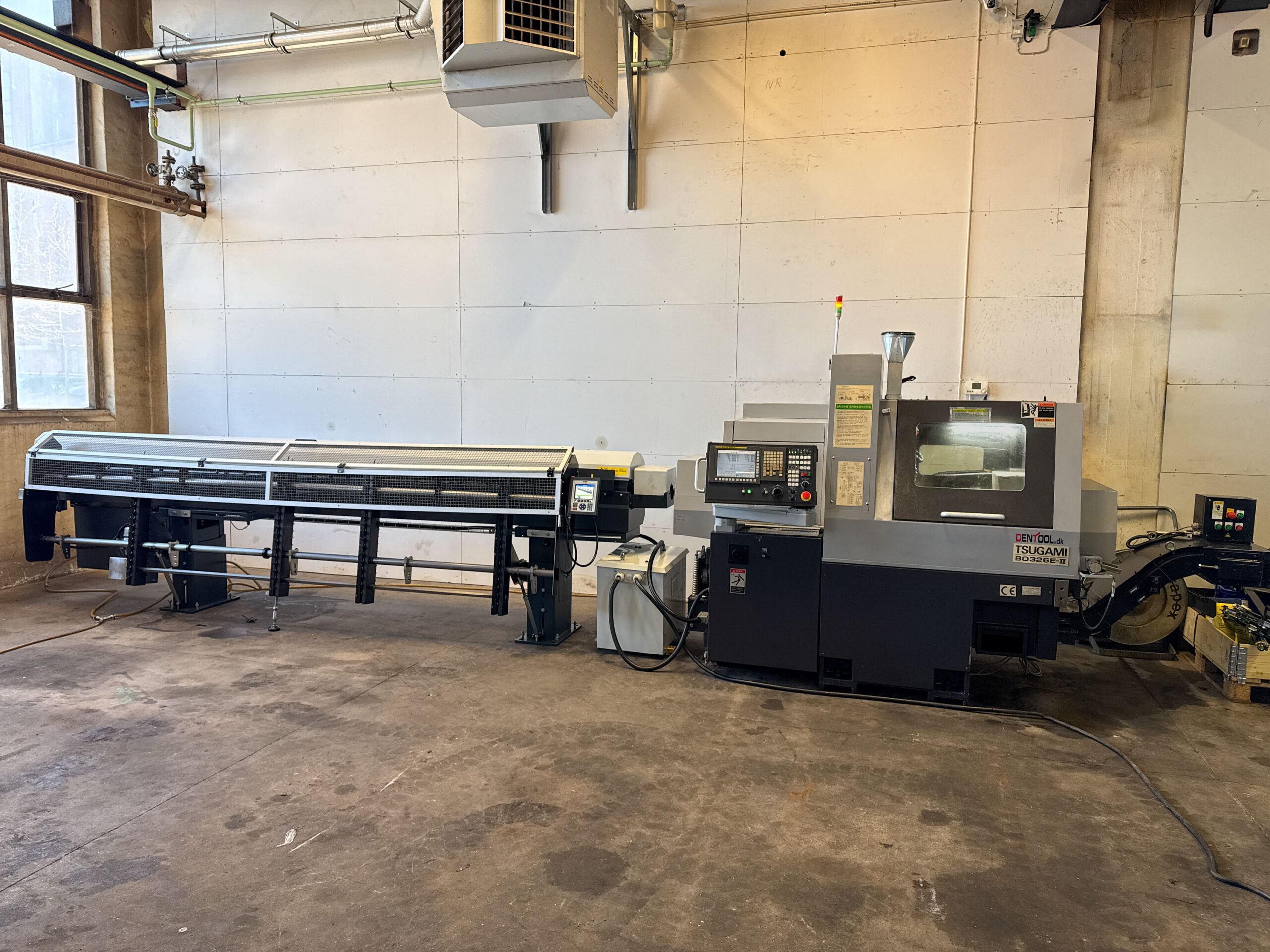

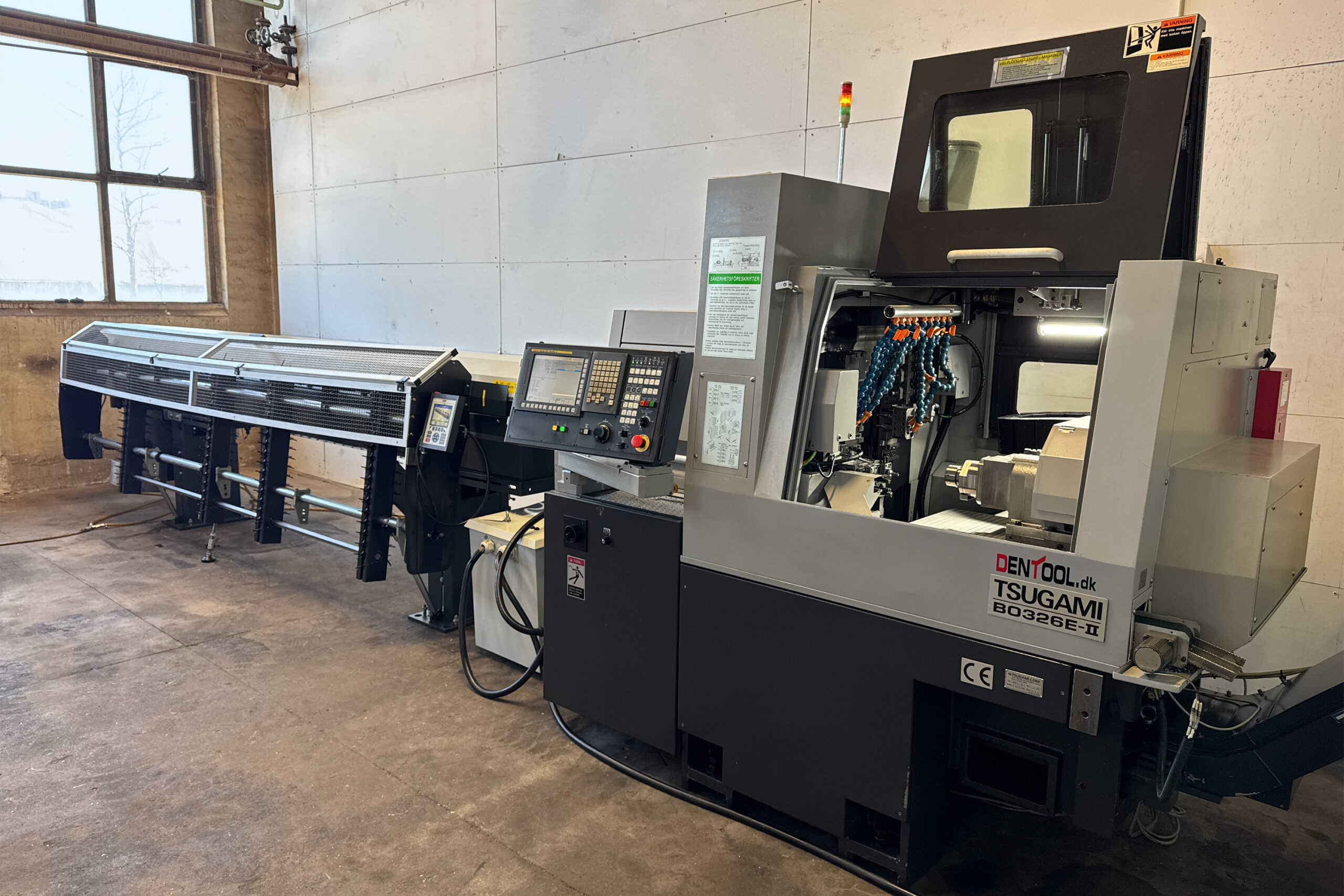

TSUGAMI BO326E-II – 2016
- Year:
- 2016
- Max. capacity:
- 32 mm dia
- Max. Turning length (fixed guide bush):
- 320 mm
- Max. Turning length (Rotary guide bush):
- 70 mm
- Max. tapping capacity of main spindle:
- M 10
- Max Rotary Drilling Capasity:
- 12 mm
- spindle boring :
- 32 mm

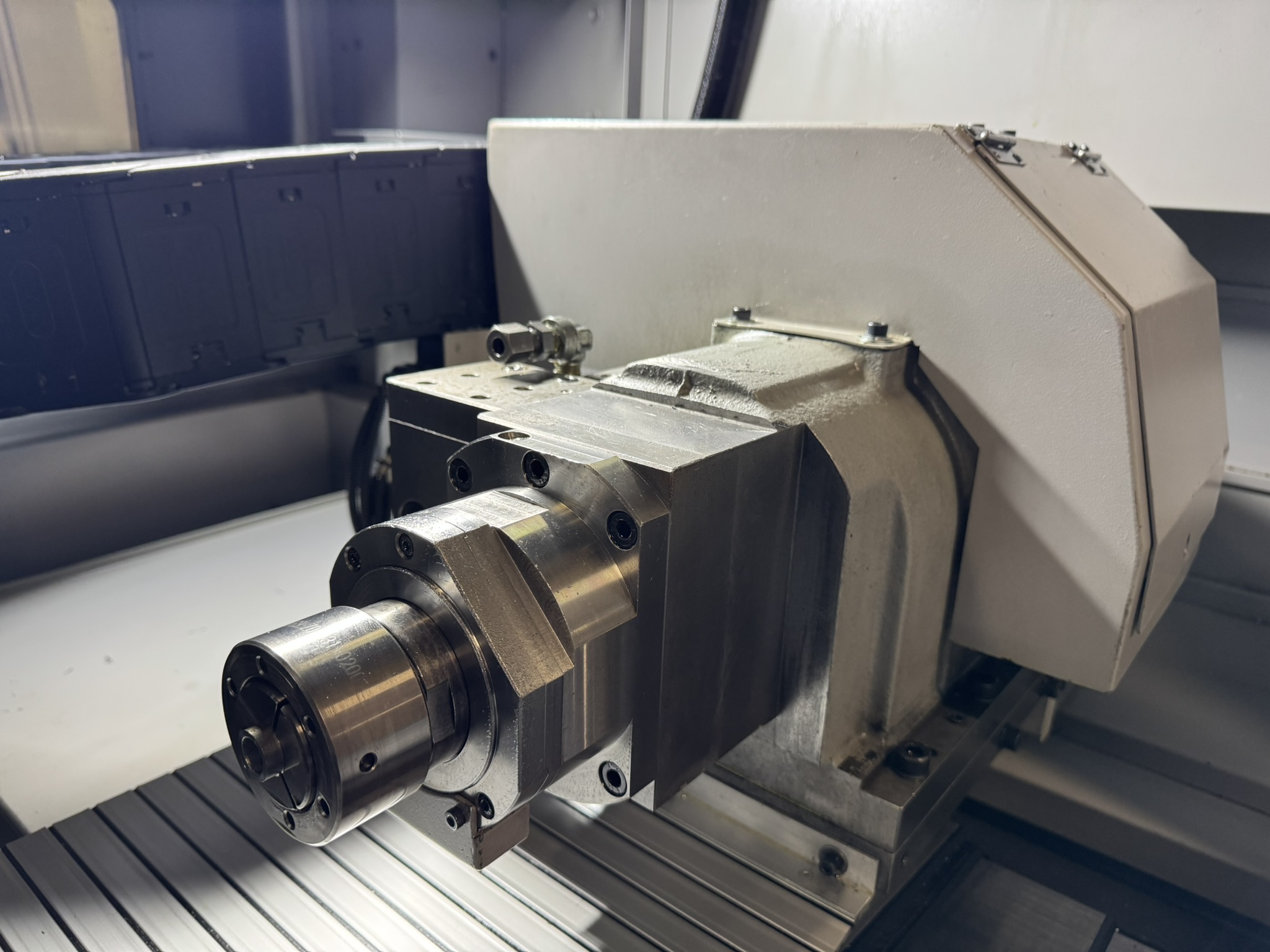

- Sub Spindle speeds:
- 8000 rpm
- Spindlespeeds Driven Tools:
- 6000 ( 4800) - 1 kw pr/min

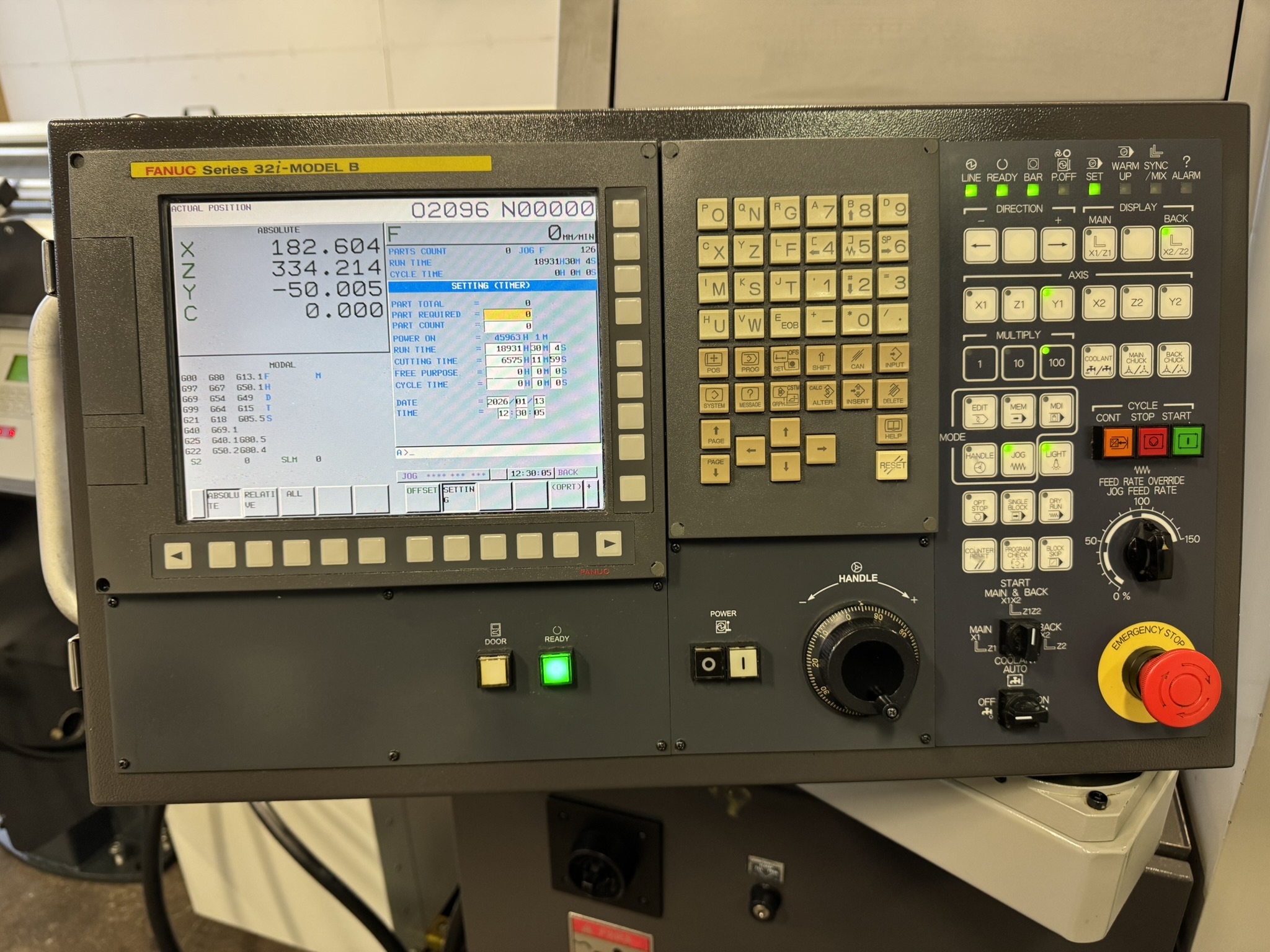

- Control system:
- Fanuc 32i-B manuf.
- Controlled in number of axis:
- X1-X2-Z1-Z2-Y1-Y2
- Main Spindle power:
- 3.7/5.5 kw
- Sucspindle power:
- 2.2/3.7 kw
- Operation Time:
- 6575 Hours
- Weight:
- 3500 kg
- Length:
- 2400 mm
- Width:
- 1500 mm
- Height:
- 2000 mm
Youtube
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
