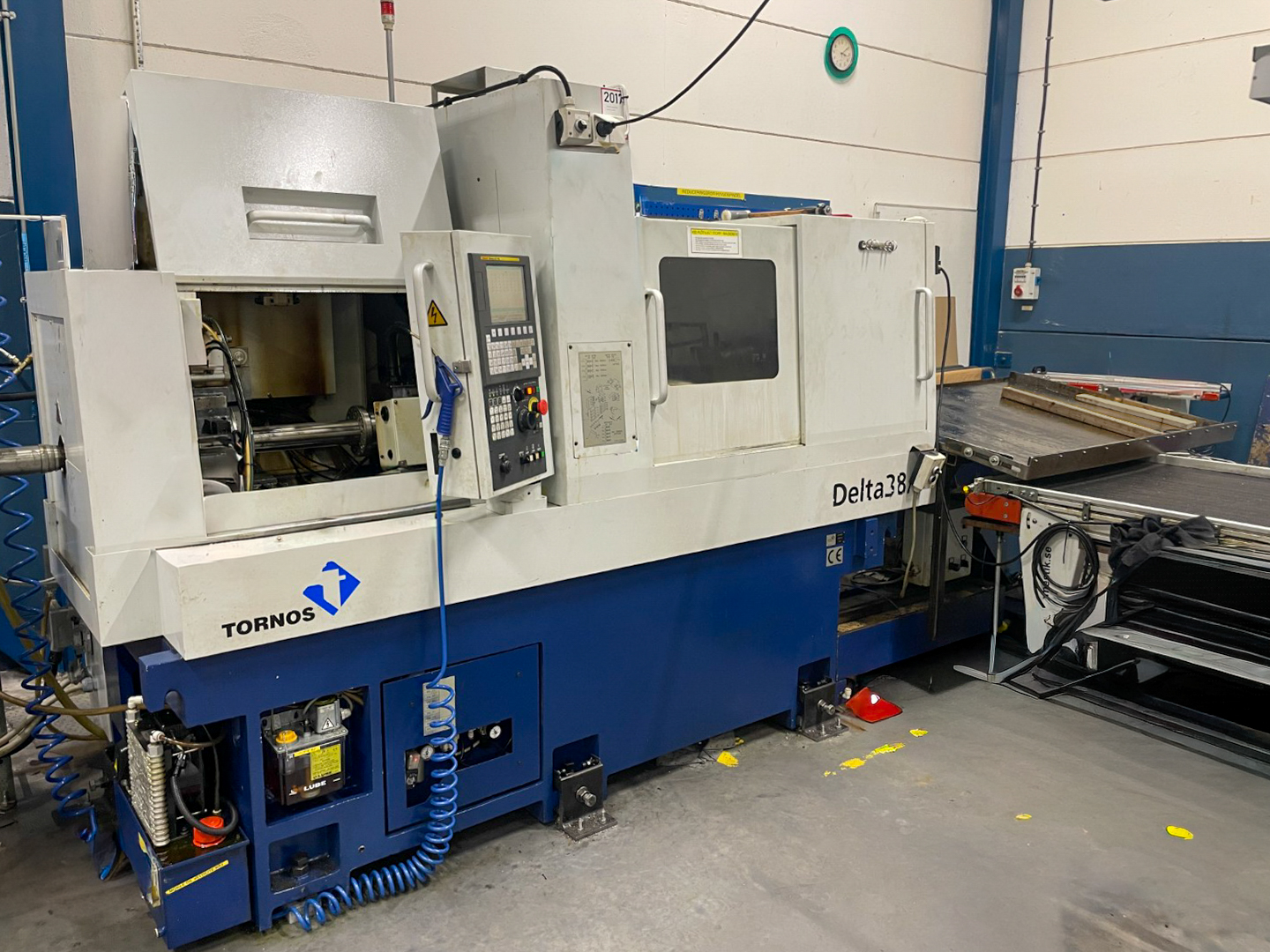

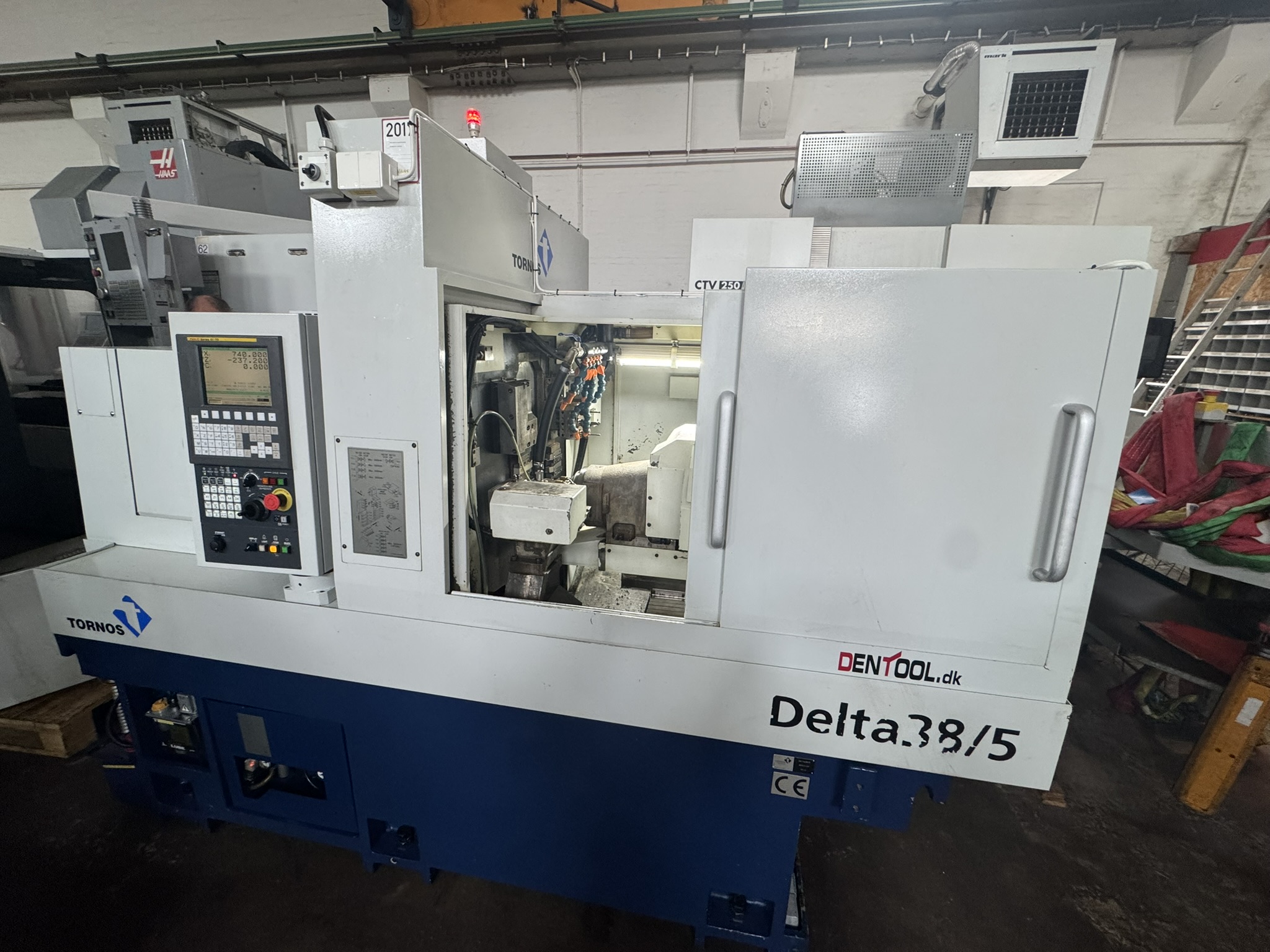

TORNOS Swiss Type Delta 38/5
- Year:
- 2013

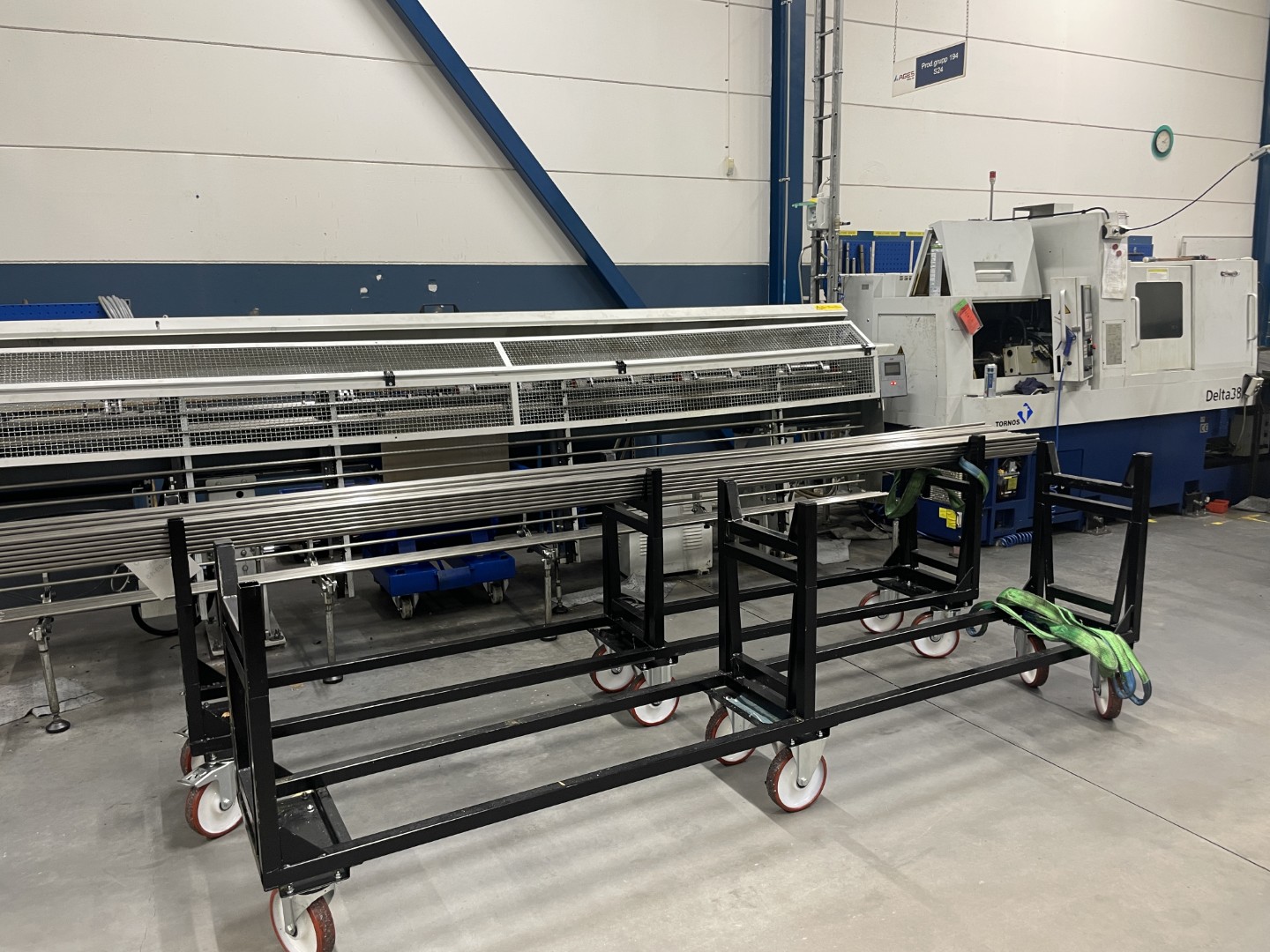

- Bar loading Magazine:
- LNS Sprint 565
- Max. capacity:
- 38 mm dia
- Total No. of tools:
- 31
- Max Rotary Drilling Capasity:
- 13 mm
- Max. tapping capacity of main spindle:
- M12
- Main Spindle Speeds:
- 200-6000 rpm.
- Main Spindle power:
- 7.5/11 kw
- spindle boring :
- 38 mm
- Sub-spindle max dia.:
- 38 mm
- Sub Spindle speeds:
- 200-7000 rpm
- Sucspindle power:
- 3.7/5.5 kw
- C axis Subspindle:
- 15 Degrees
- C Axis Main spindle:
- 0.001 Degree
- Spindlespeeds Driven Tools:
- 200-5000 - 1 kw pr/min

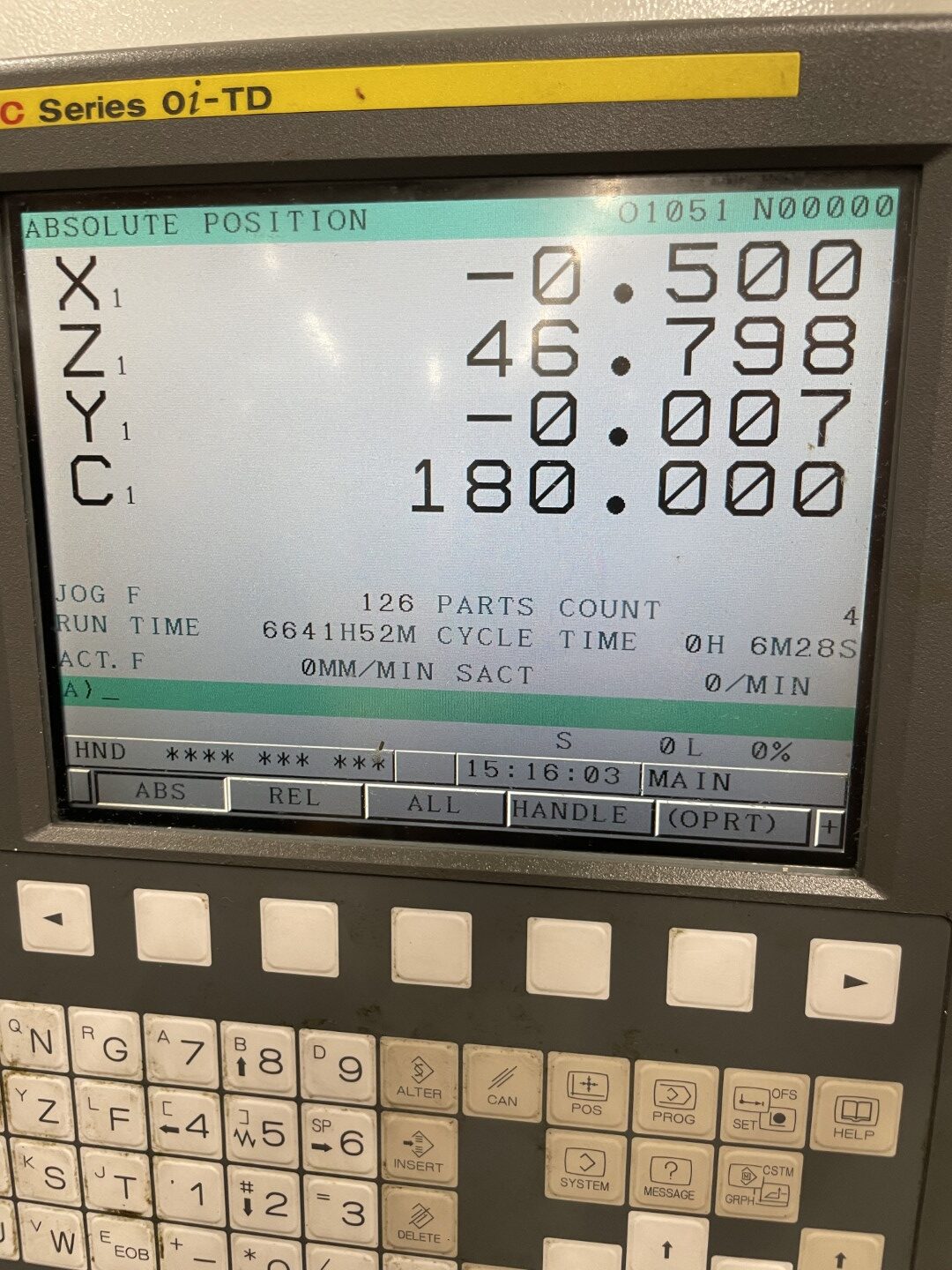

- Control system:
- Fanuc 0i-TD manuf.
- Controlled in number of axis:
- 5+2
- Cutting Time:
- 7000 Hours
- Weight:
- 4600 kg
- Length:
- 2800 mm
- Width:
- 1600 mm
- Height:
- 2000 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
