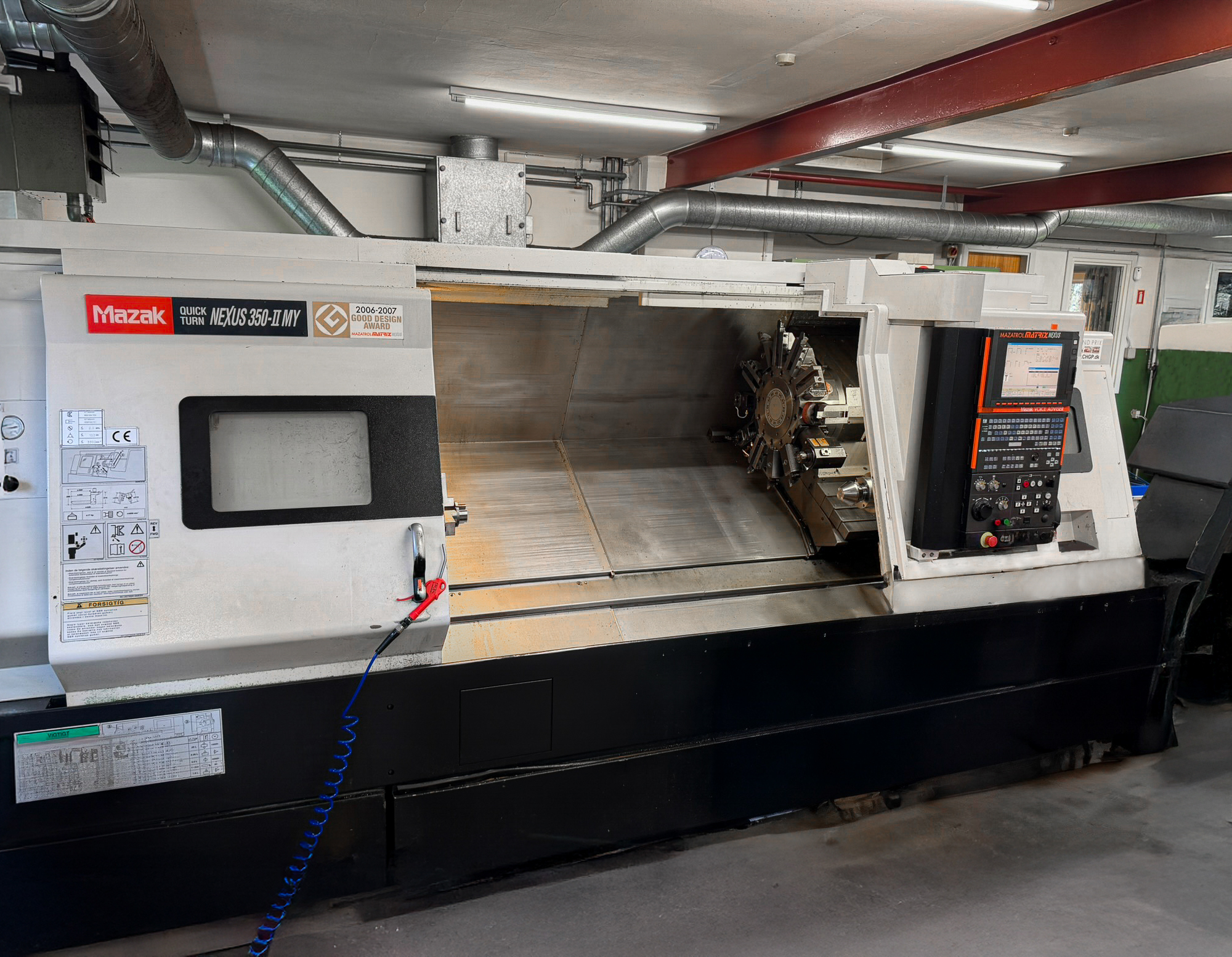

MAZAK QTN 350 MY NEXUS
- Maskingruppe:
- CNC LATHE
- Årgang:
- 2008
- Max. Turning diameter:
- 420 mm dia.
- Max. Turning dia o/slide:
- 700 mm dia.
- Turning Length:
- 1538 mm
- Main motor power:
- 30 kw
- Main Spindle speed Range:
- 3300 rpm
- Spindle bore:
- 102 mm dia.
- Z Axis Stroke:
- 1607 mm
- Y axis :
- 150 mm
- C Axis - Mainspindle Stroke:
- 0.001 degree

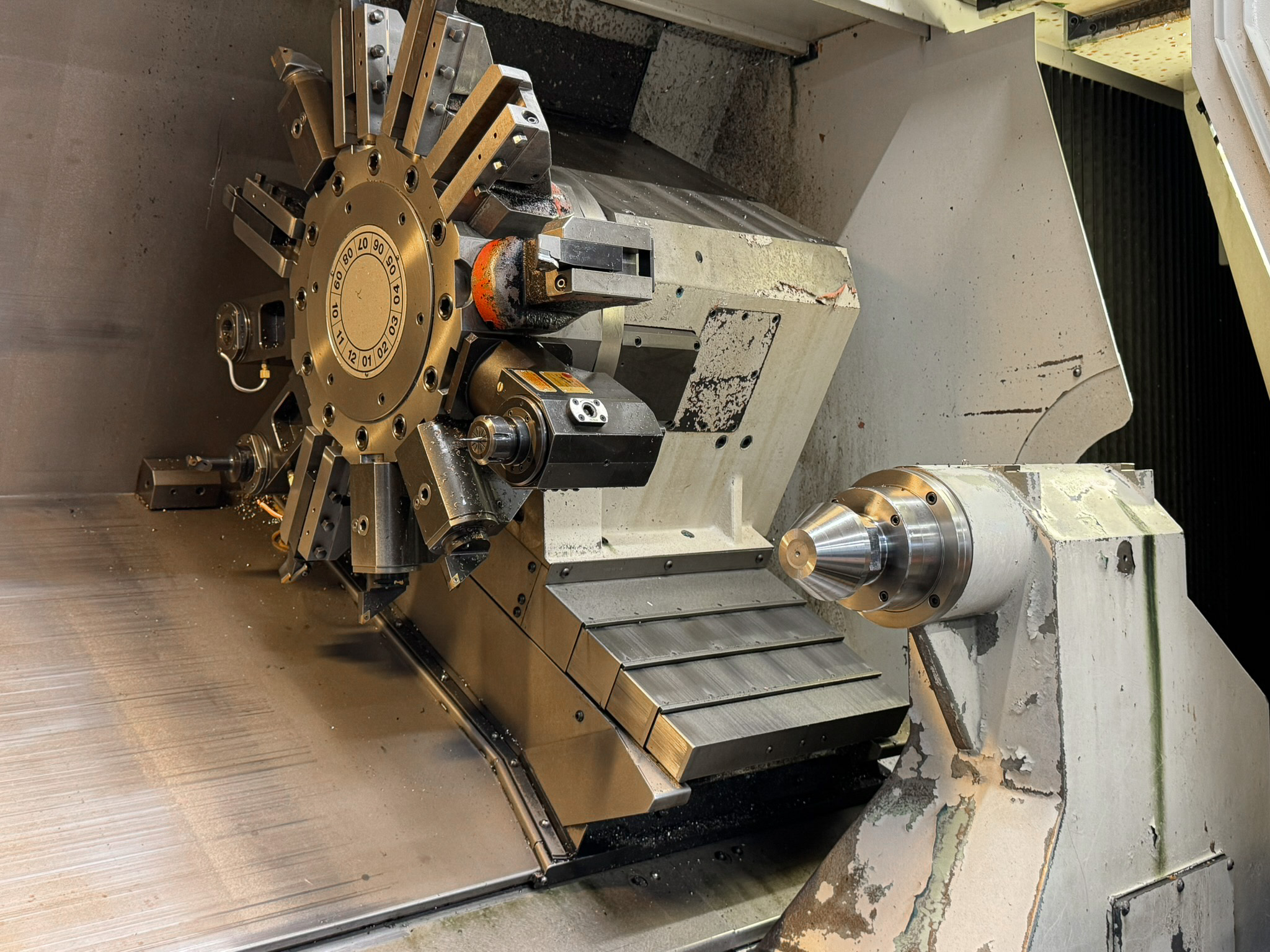

- Tool Turret capacity:
- 12 stations
- Live stations in Turret 1:
- 12 pcs.
- Motorpower M spindle:
- 7.5 Kw
- Live Tooling Spindle speeds:
- 4500 rpm
- Controlled in :
- X-Z-C-Y axis
- Hydr. Chuck Mainspindle:
- 300 mm dia
- Live Tools Angle:
- 2 pcs.
- Rotating Tools Straight:
- 2 Pcs
- Delivery time :
- Feb. 2025
- Vægt:
- 8600 kg
- Længde:
- 4300 mm
- Bredde:
- 2600 mm
- Højde:
- 2400 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
