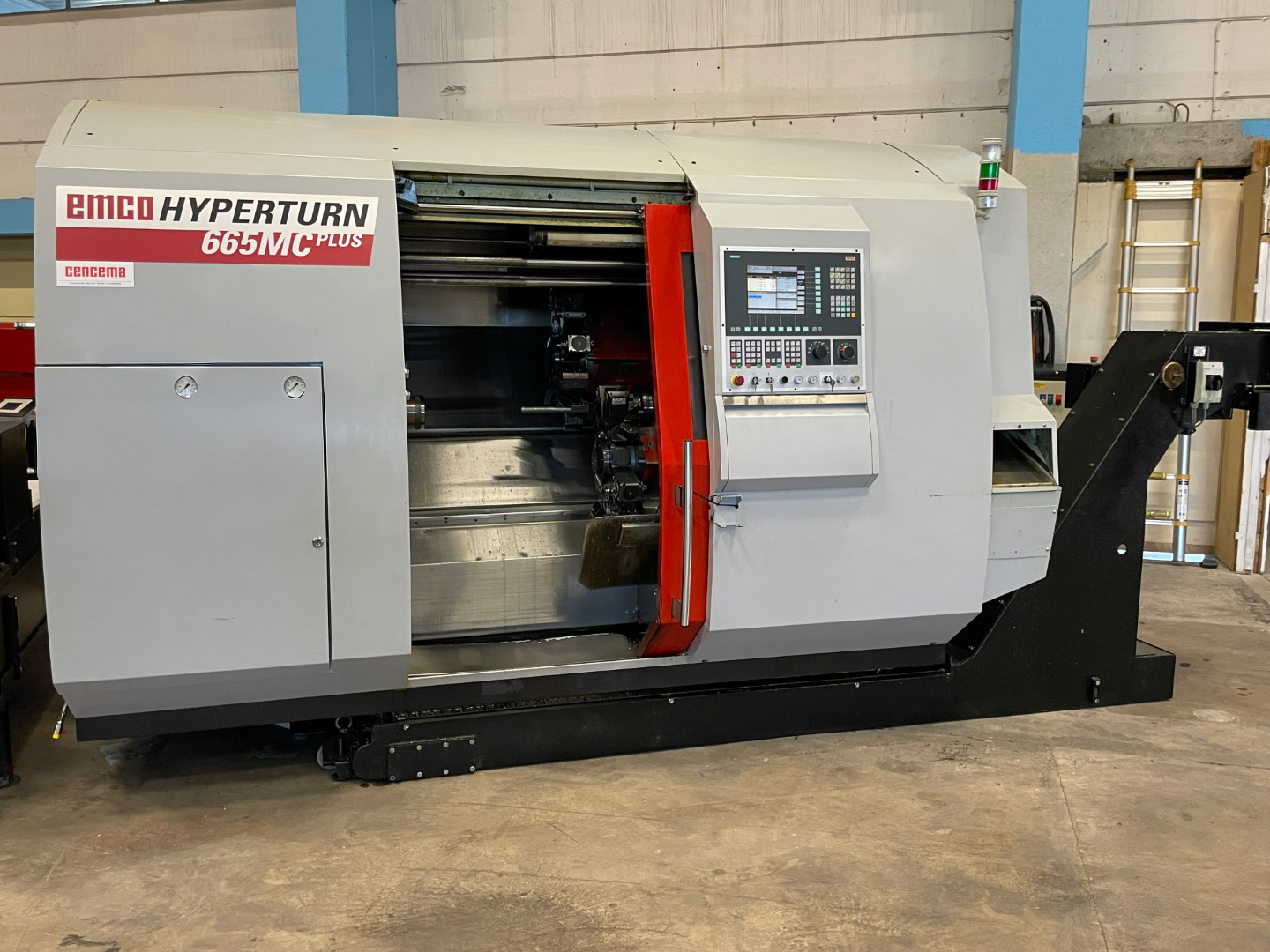

EMCO HYPERTURN 665 MC PLUS
- Maskingruppe:
- CNC LATHE
- Årgang:
- 2002
- Max. Turning diameter:
- 430 mm dia.
- Max. Turning dia o/slide:
- 600 mm dia.
- Dist. between spindels:
- 975 mm
- Turning Length:
- 744 mm
- Boring trough drawing pipe:
- 65 mm dia.
- Y axis :
- 100 +/- 50 mm
- Main motor power:
- 21/29 kw
- Main Spindle speed Range:
- 0-5000 rpm
- Sub Spindle Speeds:
- 0-5000 pr/min
- Motor Power Subspindle:
- 17/22 Kw
- C Axis - Mainspindle Stroke:
- 0.001 degree
- C Axis – Sub spindle Stroke:
- 0.001 degree
- Turret 1 with :
- 12 VDI 30 Stations
- Live stations in Turret 1:
- 12 pc. - 4000 rpm Y+B pcs.
- Motorpower M spindle:
- 6.7 Kw
- Turret 2 with:
- 12 pc. VDI 30 Stations
- Control system:
- Siemens 840 D manuf.
- Controlled in :
- 8 axis - x1-x2-z1-z2-c1-c2-y-b axis
- Power on:
- 10650 Hours
- Bar Feeder:
- KAMA 3265 mm
- B axis Stroke:
- Stepless 45 Degree
- Vægt:
- 7600 kg
- Længde:
- 3400 mm + convoyer
- Bredde:
- 2550 mm
- Højde:
- 2300 mm
