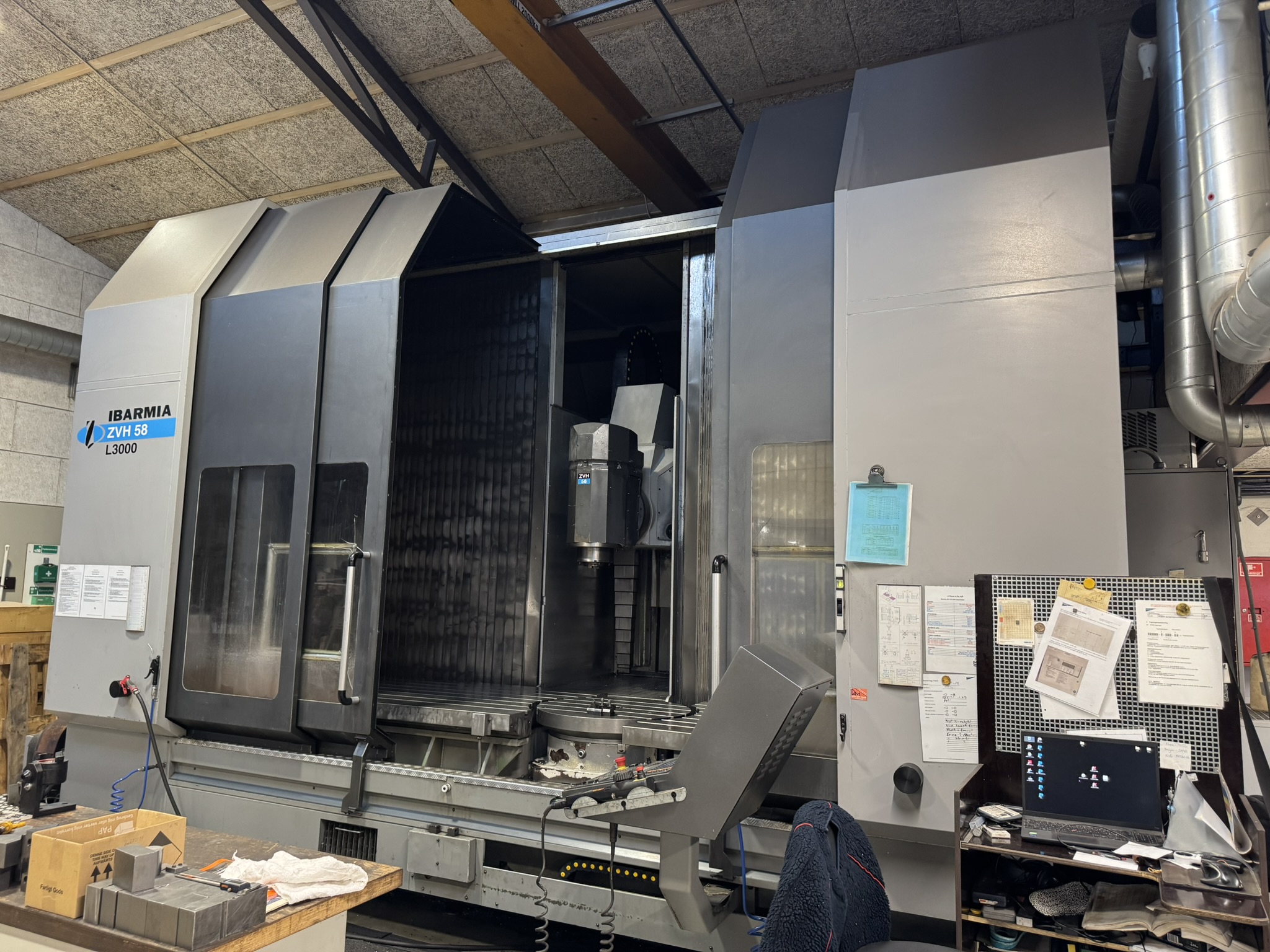

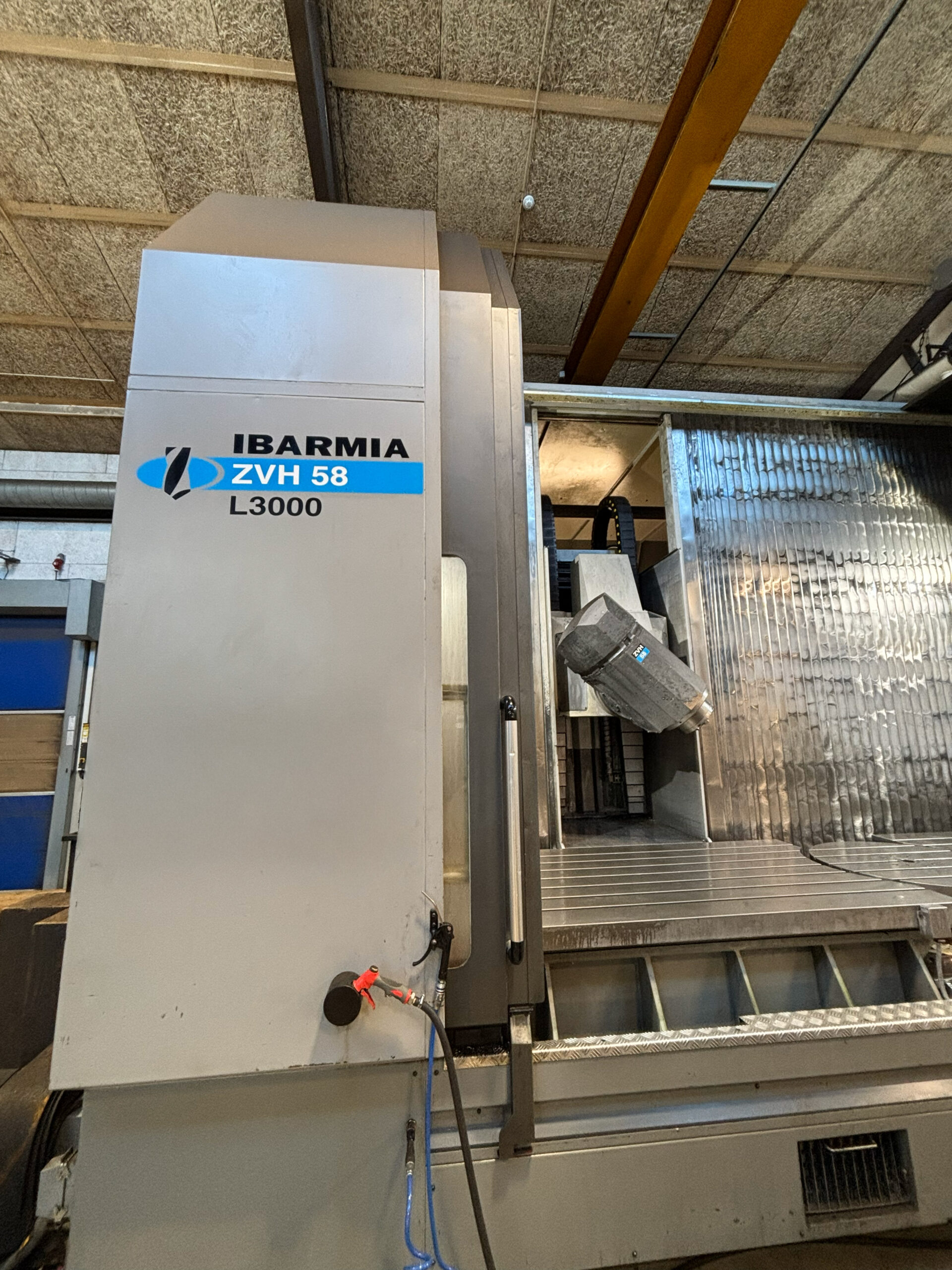

IBARMIA ZVH 58LL 5 Axis VMC 3000 mm
- Year:
- 2005
- Table Size:
- 3600 x 1050 mm
- Longitudinal travel (X):
- 3000 mm
- Cross travel (Y):
- 860 mm
- Vertical travel (Z):
- 1000 mm
- Spindle taper:
- 50 iso
- Stepless spindle speeds:
- 9000 rpm
- Spindle motor:
- 25 Kw

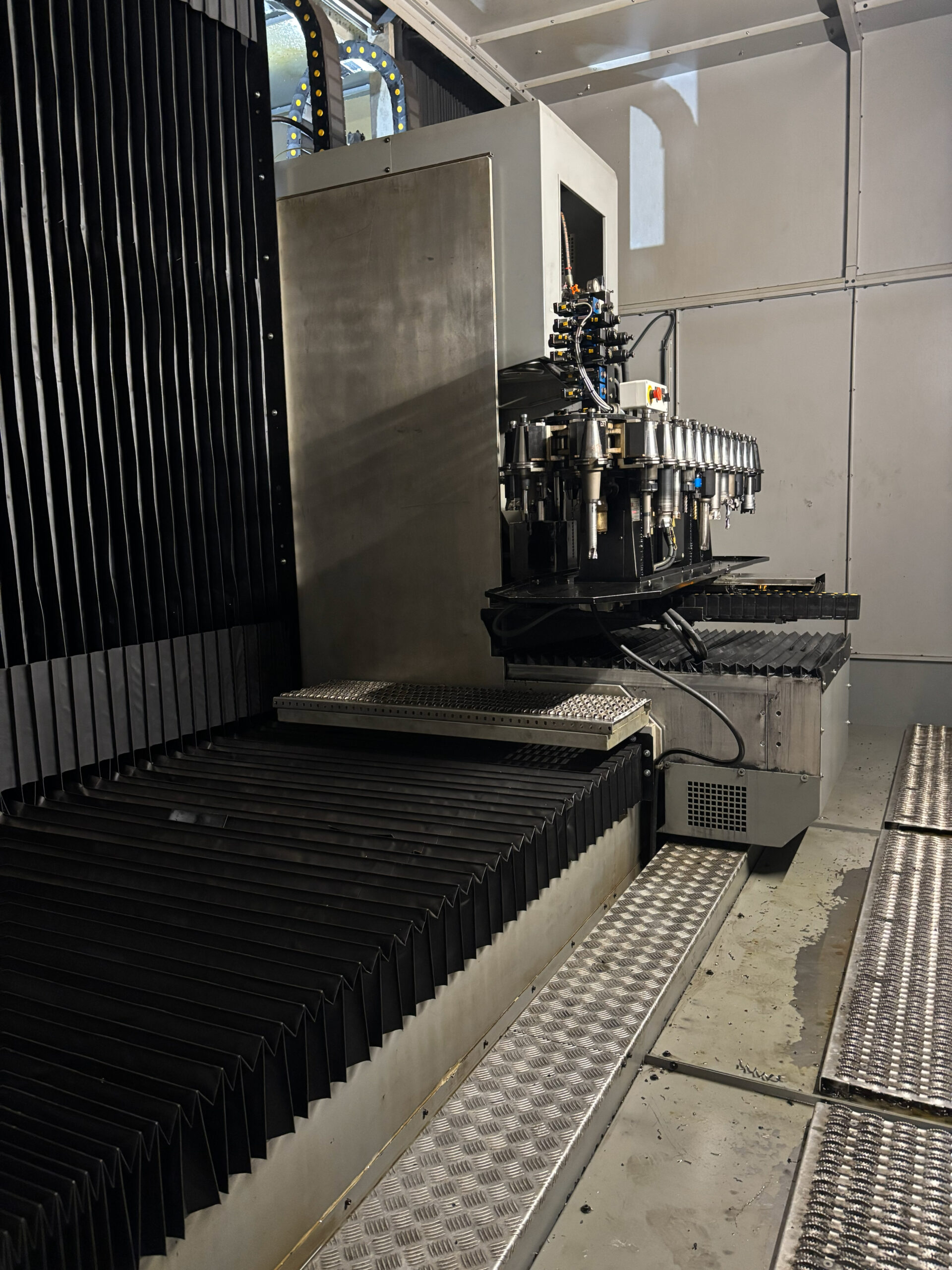

- Toolchanger ATC:
- 30 pos.

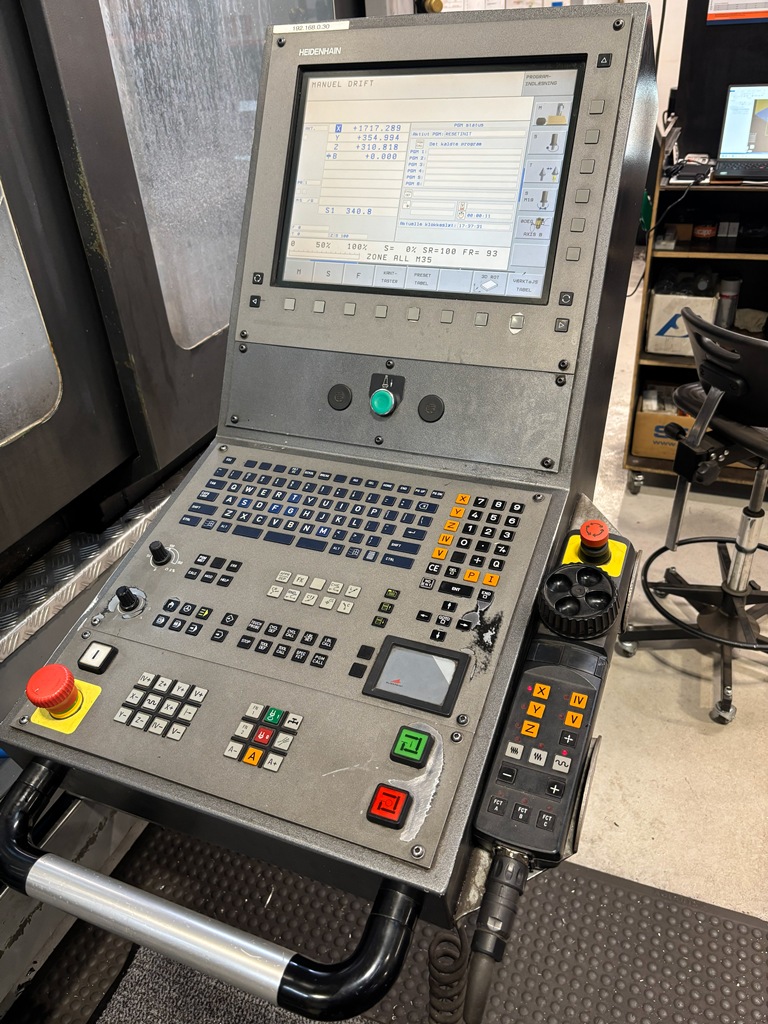

- Control system:
- Heidenhain TNC 530 manuf.
- B: Axis:
- 0.001 degree
- Controlled in axis:
- 5
- Spindel Running time:
- 12060 hours- new spindle appr. 2000 hours Hours

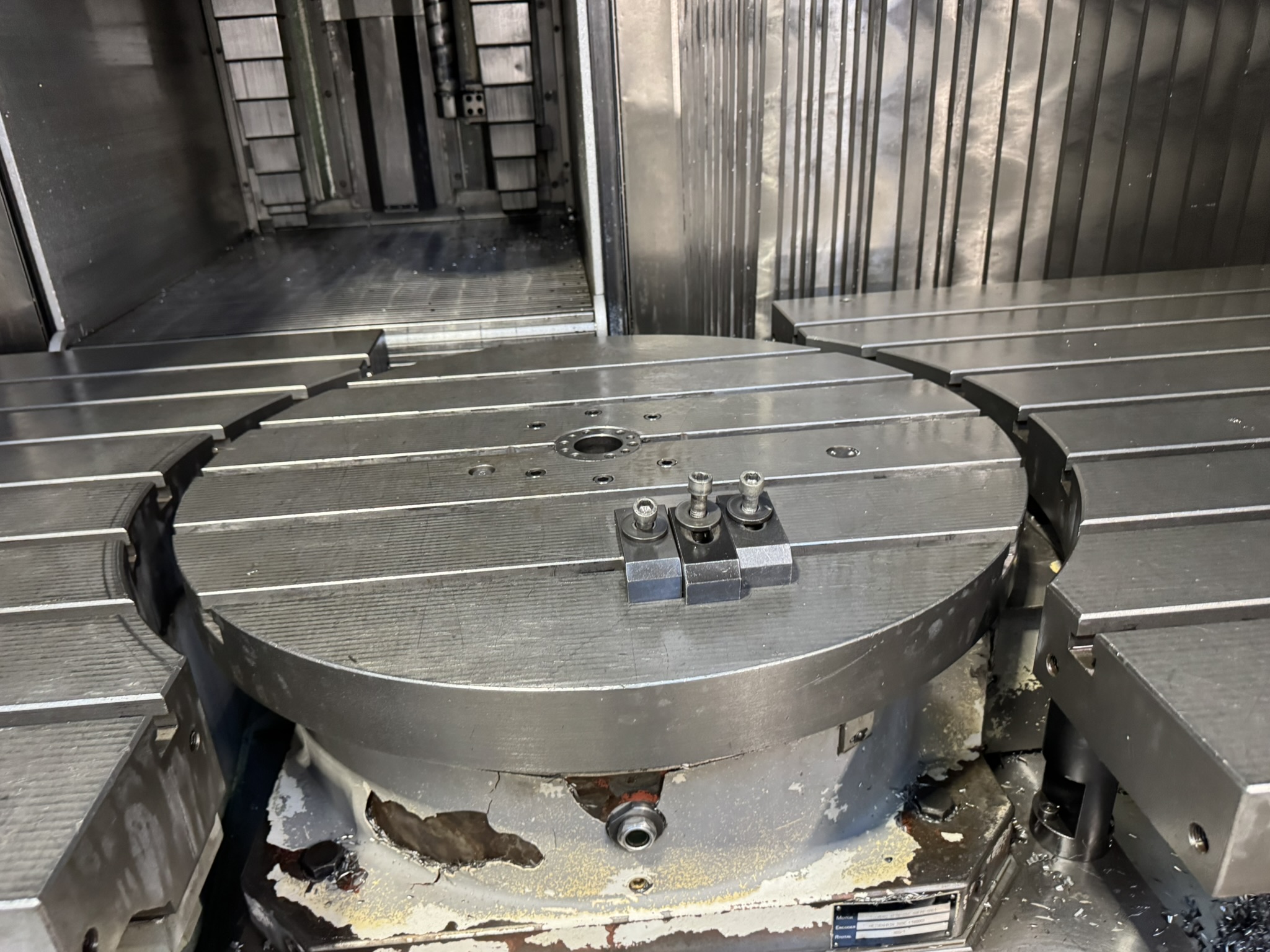

- Intigraeted Rotary table :
- 800 dia. 0.001 degree mm
- Coolant through Spindel:
- 24 bar

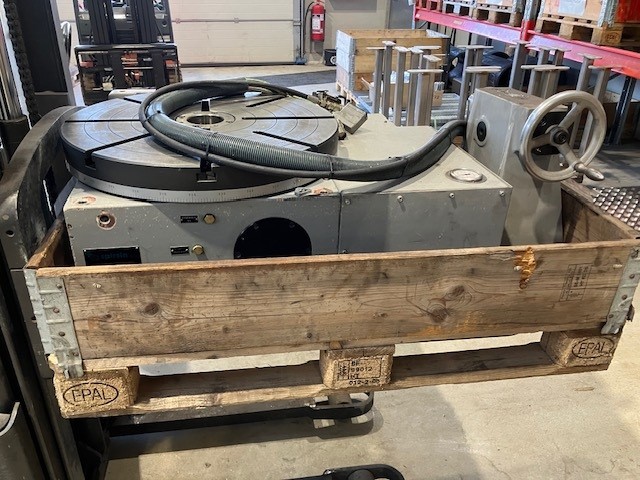

- CNC Rotary table.:
- Extra dia. 600 mm with tailstock Controlled
- Weight:
- 25400 kg
- Length:
- 8100 mm
- Width:
- 4000 mm
- Height:
- 4000 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
