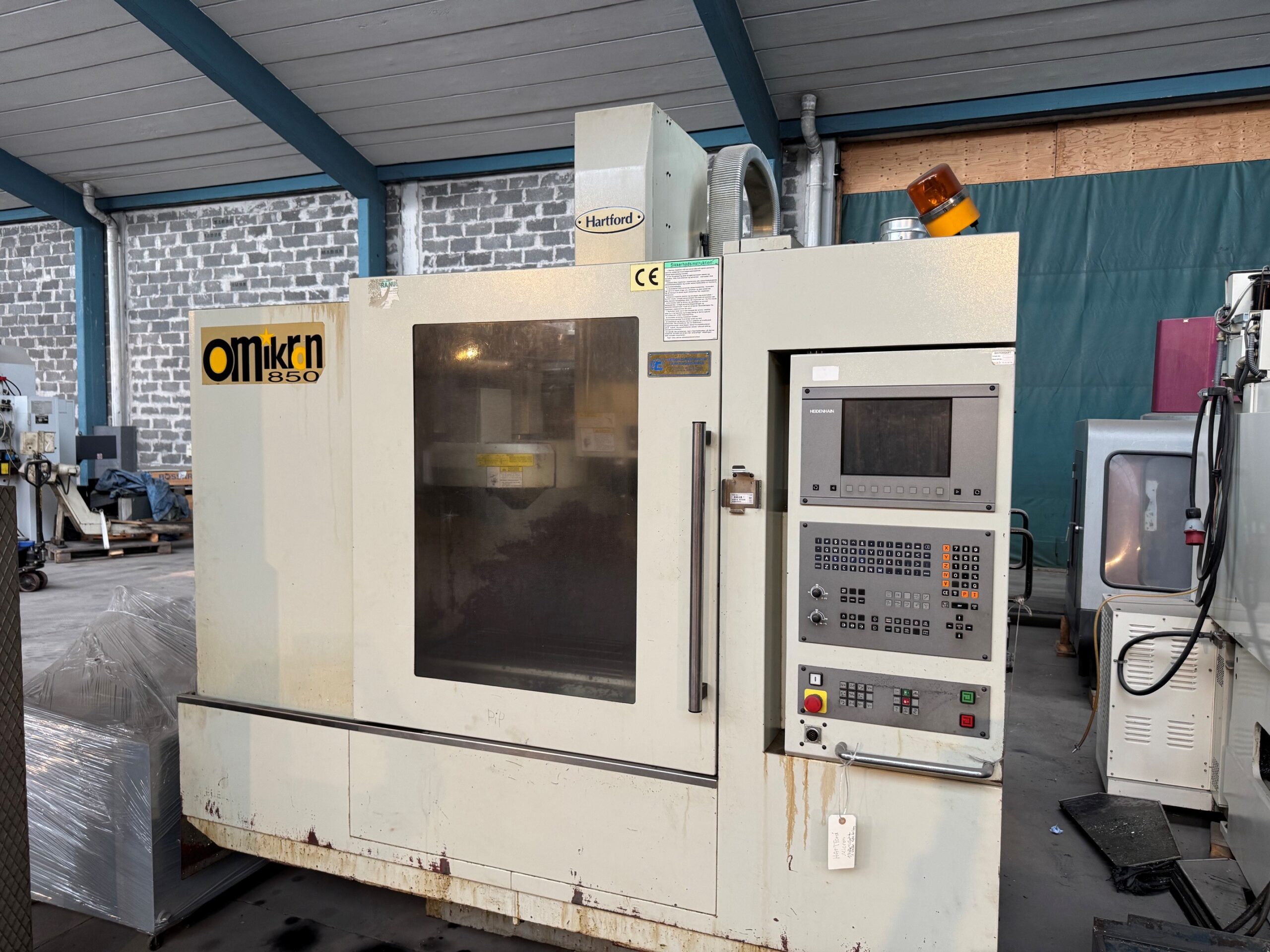

Hartford VMC 850 Micron
- Year:
- 2002
- Spindle taper:
- 40 ISO
- Controlled in axis:
- 3
- Control system:

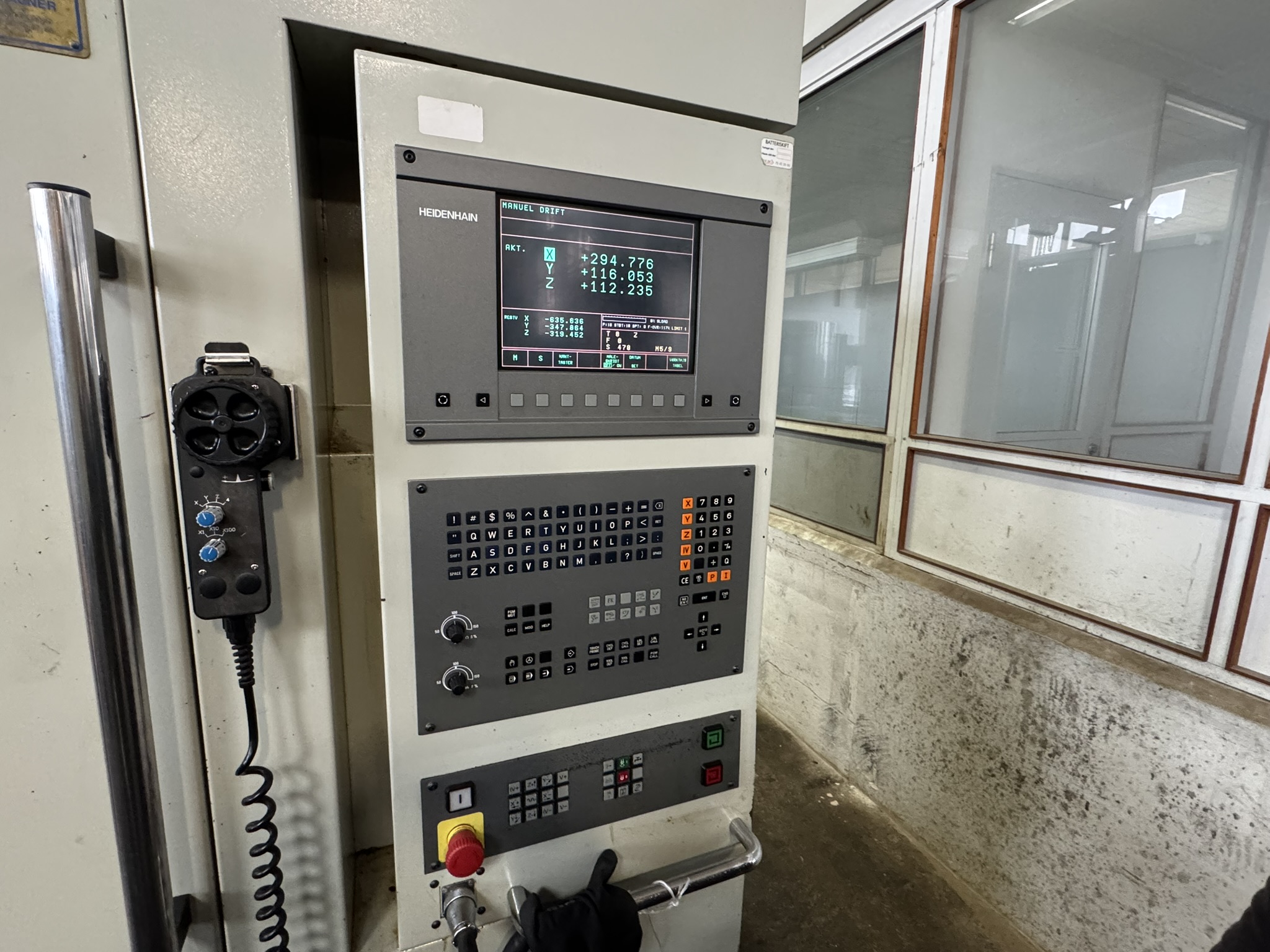

- Heidenhain TNC 410 manuf.
- Table Size:
- 1000 x 450 mm
- Max. table load:
- 300 kgs
- Longitudinal travel (X):
- 850 mm
- Cross travel (Y):
- 510 mm
- Vertical travel (Z):
- 510 mm
- Spindle speeds:
- 60-8000 rpm
- Toolchanger ATC:
- 20 pos.
- Spindle motor:
- 7.5 Kw
- Weight:
- 5200 kg
- Length:
- 2360 mm
- Width:
- 2230 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
