DOOSAN S-310
- Year:
- 2000
- Max. Turning dia o/slide:
- 500 mm dia.
- Turning Length:
- 450 mm
- Main motor power:
- 9/11 kw kw
- Total Power Source:
- 36 kva
- Tool Turret capacity:
- 12 VDI 30 stations
- Max. Turning diameter:
- 310 mm dia.
- Boring trough drawing pipe:
- 65 mm dia.
- Main Spindle speed Range:
- 45-4500 rpm
- X Axis Stroke:
- 200 mm
- Z Axis Stroke:
- 450 mm
- Control system:
- Fanuc 18-T manuf.

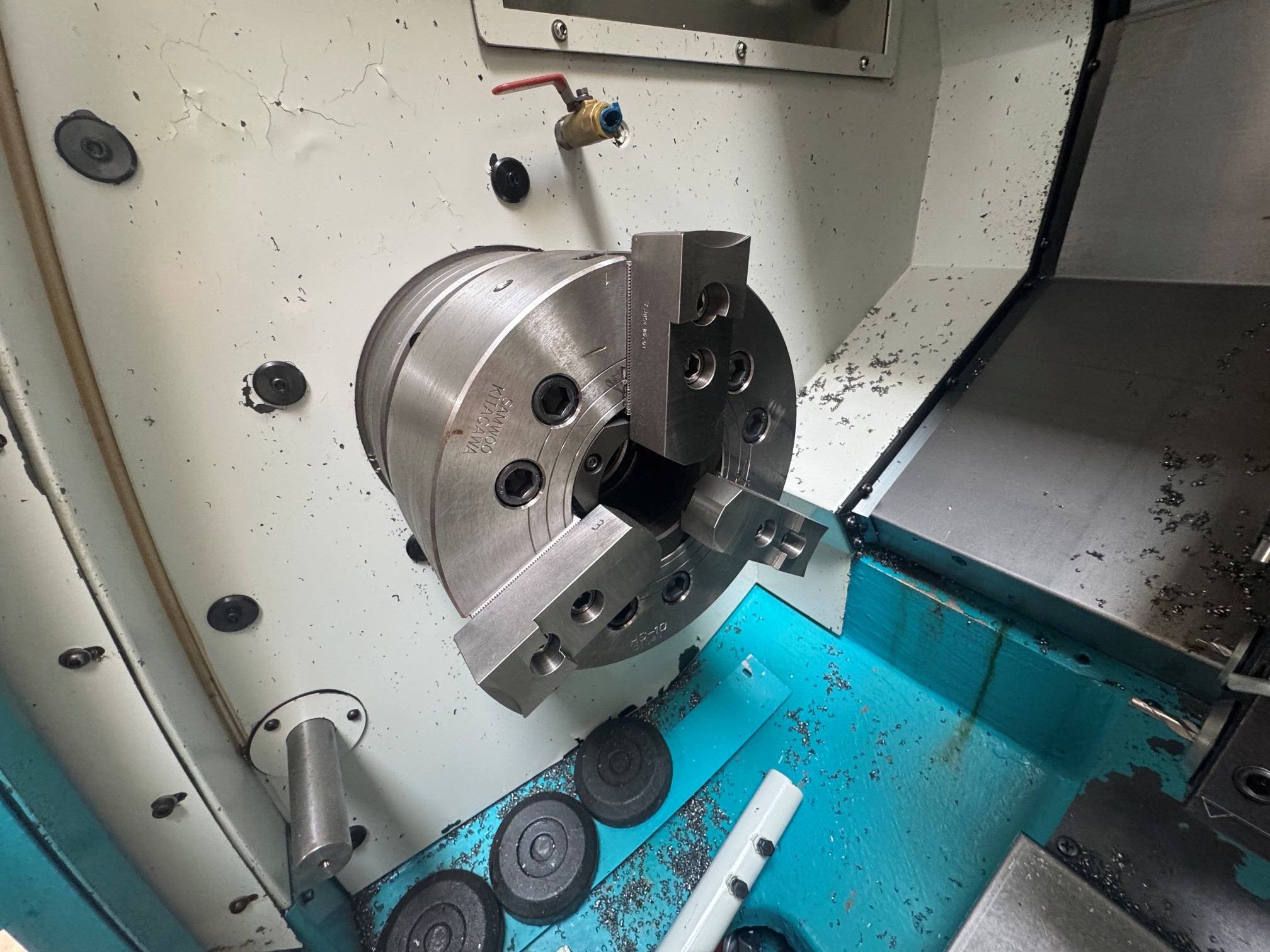

- Hydr. Chuck Mainspindle:
- Kitagava HS-10 - 250 mm dia
- Weight:
- 3200 kg
- Length:
- 3350 mm
- Width:
- 1800 mm
- Height:
- 1900 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
