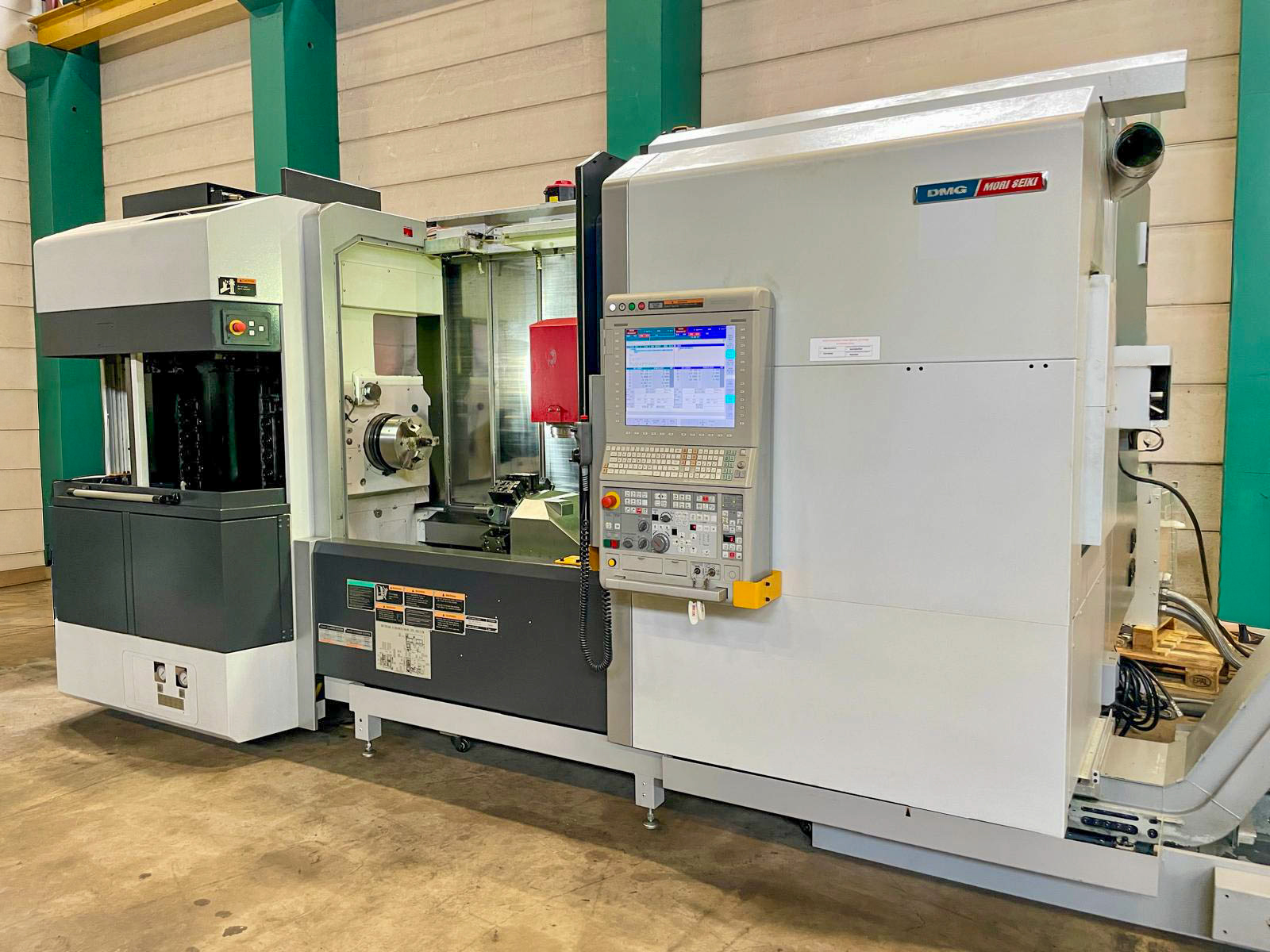

MORI SEIKI NTX 2000 / 1500 SZ MAPPS-IV CNC
- Årgang:
- 2013

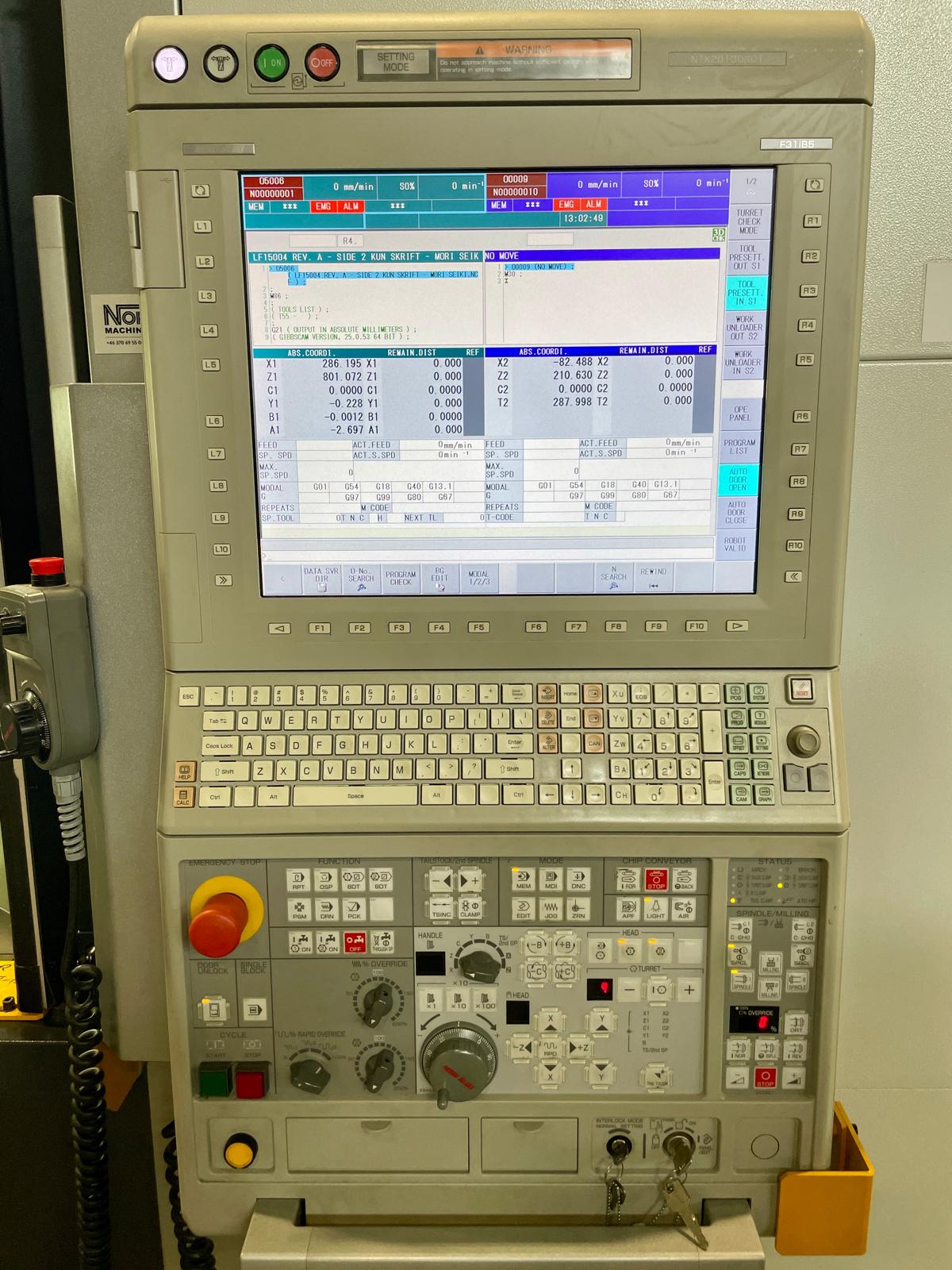

- Control system:
- MAPPS IV (MX711 ) 5 axis manuf.
- Mainspindle:
- 4000 RPM - 26 kw
- Sub Spindle:
- 5000 RPM - 22 Kw
- B axis Stroke:
- 120 degree - 0.0001 Degree
- Hydr. Chuck Mainspindle:
- Kitagawa BB-210 - 250 mm/dia mm dia
- Hydr. Chuck Supspindle :
- Kitagawa BB-208 - 200 mm/dia mm dia

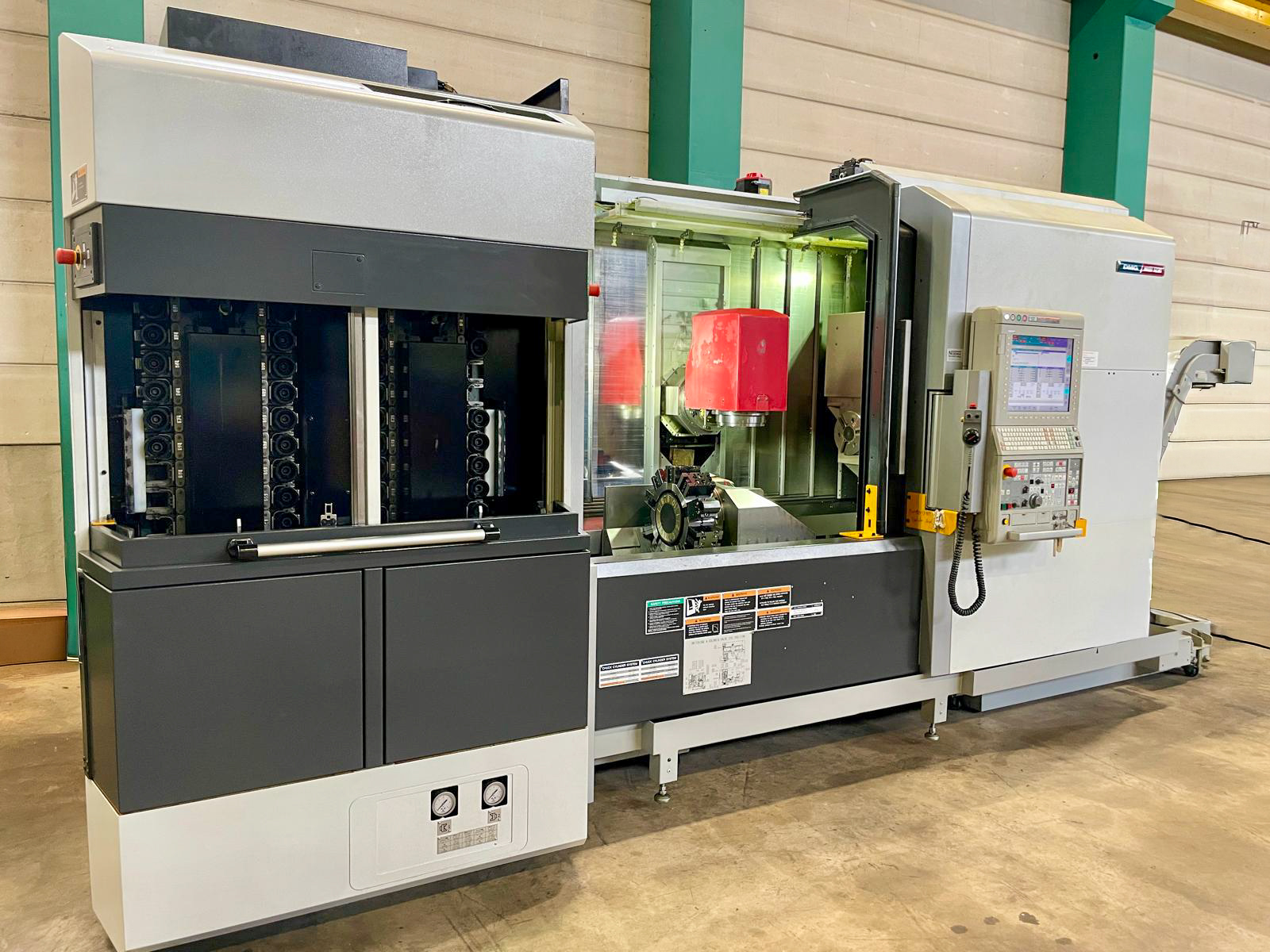

- ATC Tool magazine with:
- 76 Stations
- High Pressure Coolant:
- 70 bar
- Delivery time :
- Dec. 2025
- Spindle bore:
- 91 mm dia.
- Work Measuring System:
- Renishaw Spindel probe OMP 60
- Max. Turning diameter:
- 610 mm dia.
- Turning Length:
- 1540 mm
- Boring trough drawing pipe:
- 80 mm dia.
- Y axis :
- +/- 125 mm mm
- C Axis - Mainspindle Stroke:
- 0.001 degree
- B axis milling power:
- 18.5 kw
- B axis spindrel rpm.:
- 12000 rpm
- X Axis Stroke:
- 675 mm
- Z Axis Stroke:
- 1562 mm
- Tool Turret capacity:
- Lower - 10 stations
- Vægt:
- 15500 kg
- Længde:
- 4080 mm
- Bredde:
- 2980 mm
- Højde:
- 2621 mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
