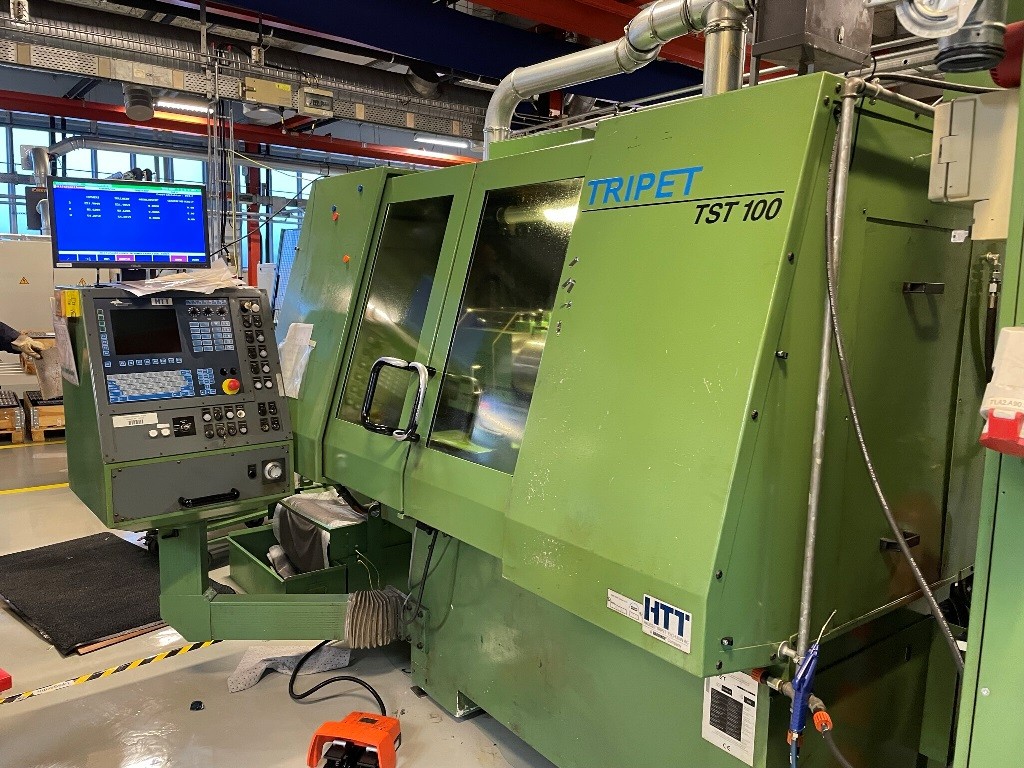

TRIPET HAUSER HTT CNC TST 100 CNC-4R
- Maskingruppe:
- INTERNAL GRINDER
- Årgang:
- 2002
- Grinding length:
- 300 mm
- Max. grinding diameter:
- 0.5 - 75 mm
- Centre height:
- B axis- 130 mm
- Accuracy:
- 0.0005 mm
- Z axis:
- 340 - 0.0005 mm mm

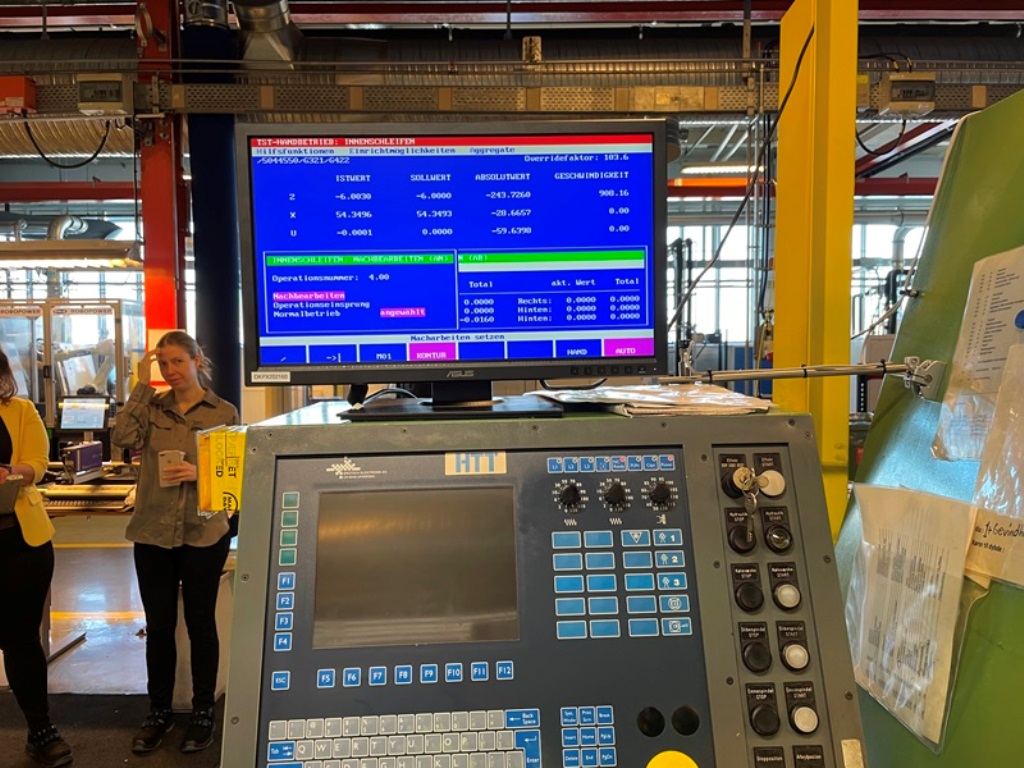

- Control system:
- Brüsch TPS 3000 U,X,Z,B,C manuf.
- C-axis main spindle:
- 3\" - 100 rpm Degree
- B axis :
- Manuel -30/+60 degree
- Max. internal grinding diameter:
- 0,5-75 mm
- Tool spindle carrier speeds:
- B- axis 10-1500 rpm
- X Axis Cross slide:
- 50 mm
- Grinding spindle speeds:
- 4 Spindles - 25.000 - 45.000 2x 75000 rpm
- Centre chuck:
- PHM Heyn Pneumatic. 250 mm dia
- Paperfiltrazion:
- Knoll
- U axis Cross slide :
- 100 mm
- Vægt:
- 3500 kg
- Længde:
- 2500 mm
- Bredde:
- 2500 mm
- Højde:
- 2300 mm
