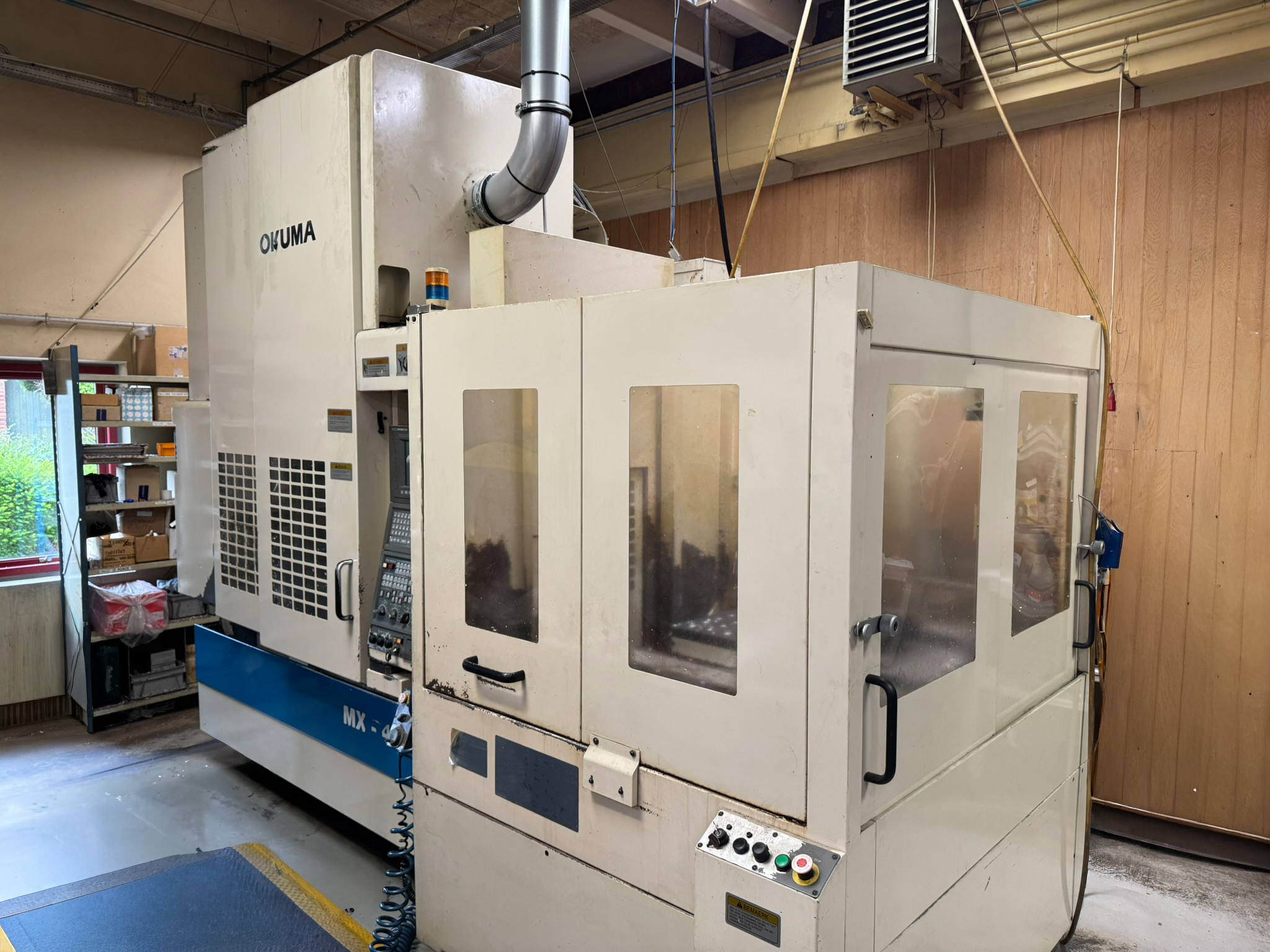

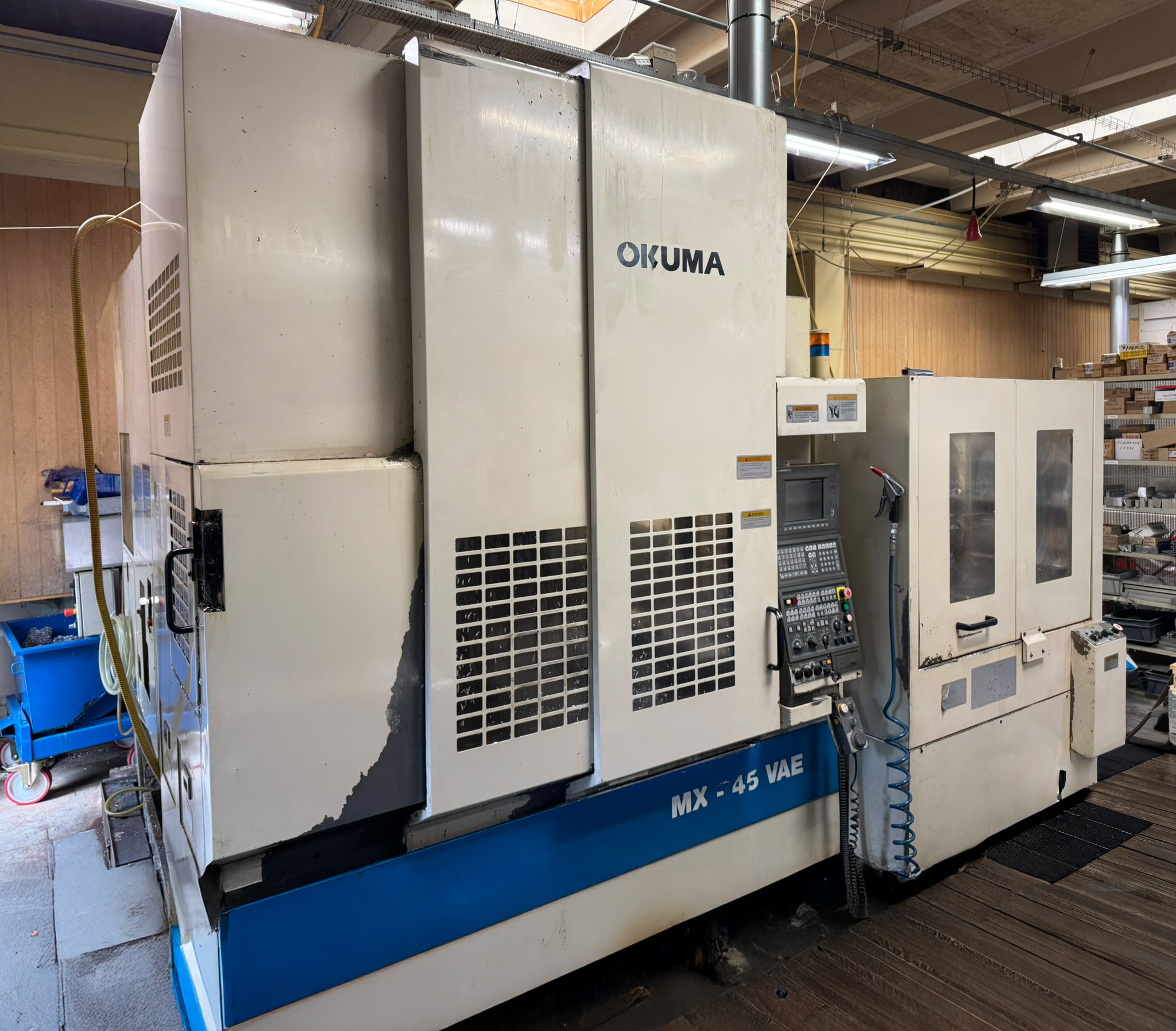

Okuma MX45 VAE
- Year:
- 2001

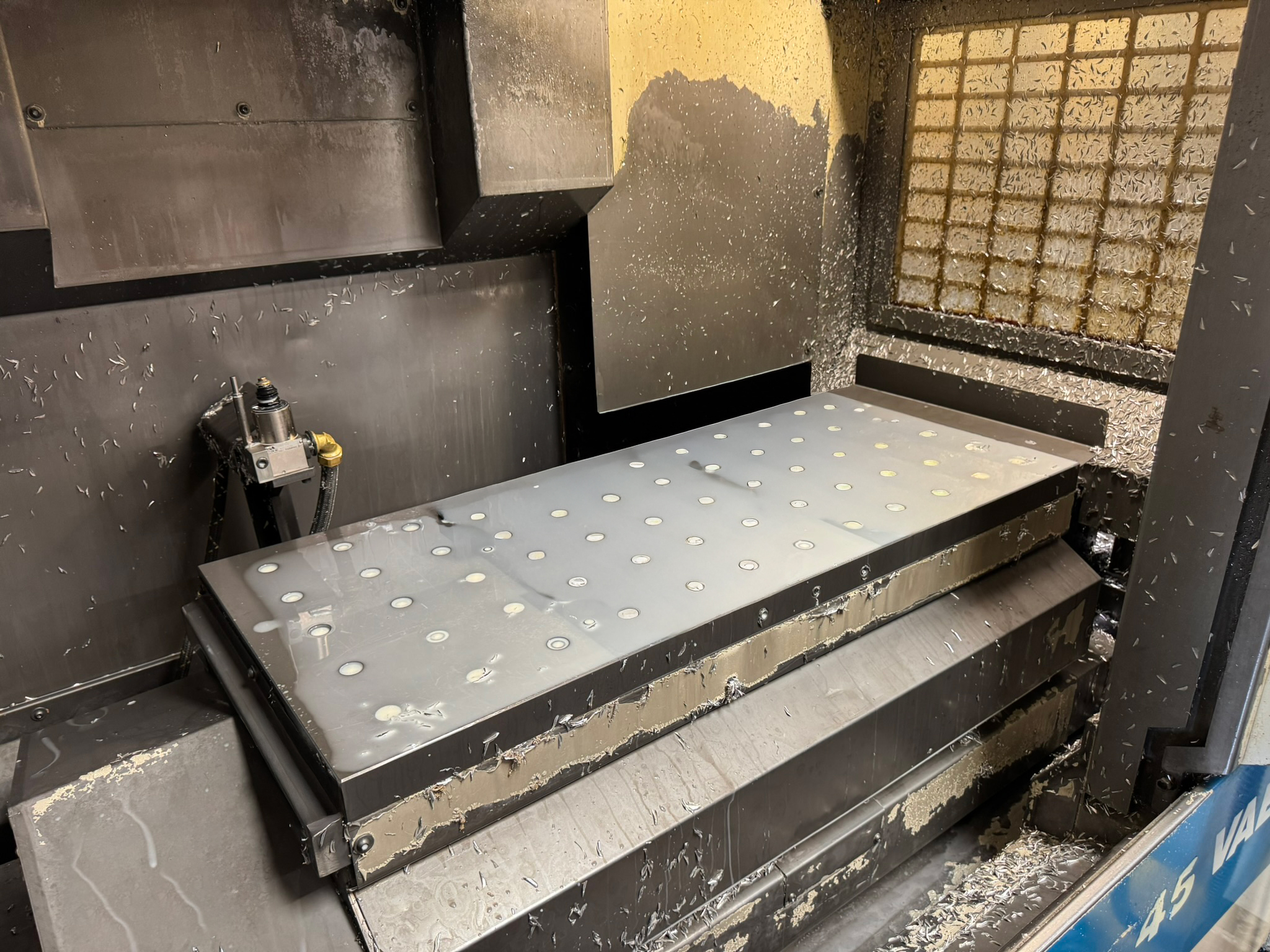

- Table Size:
- 1000 x 430 mm
- Max. table load:
- 500 kgs
- Longitudinal travel (X):
- 700 mm
- Cross travel (Y):
- 450 mm
- Vertical travel (Z):
- 400 mm
- Spindle taper:
- 40 ISO
- Spindle speeds:
- 20-15000 rpm

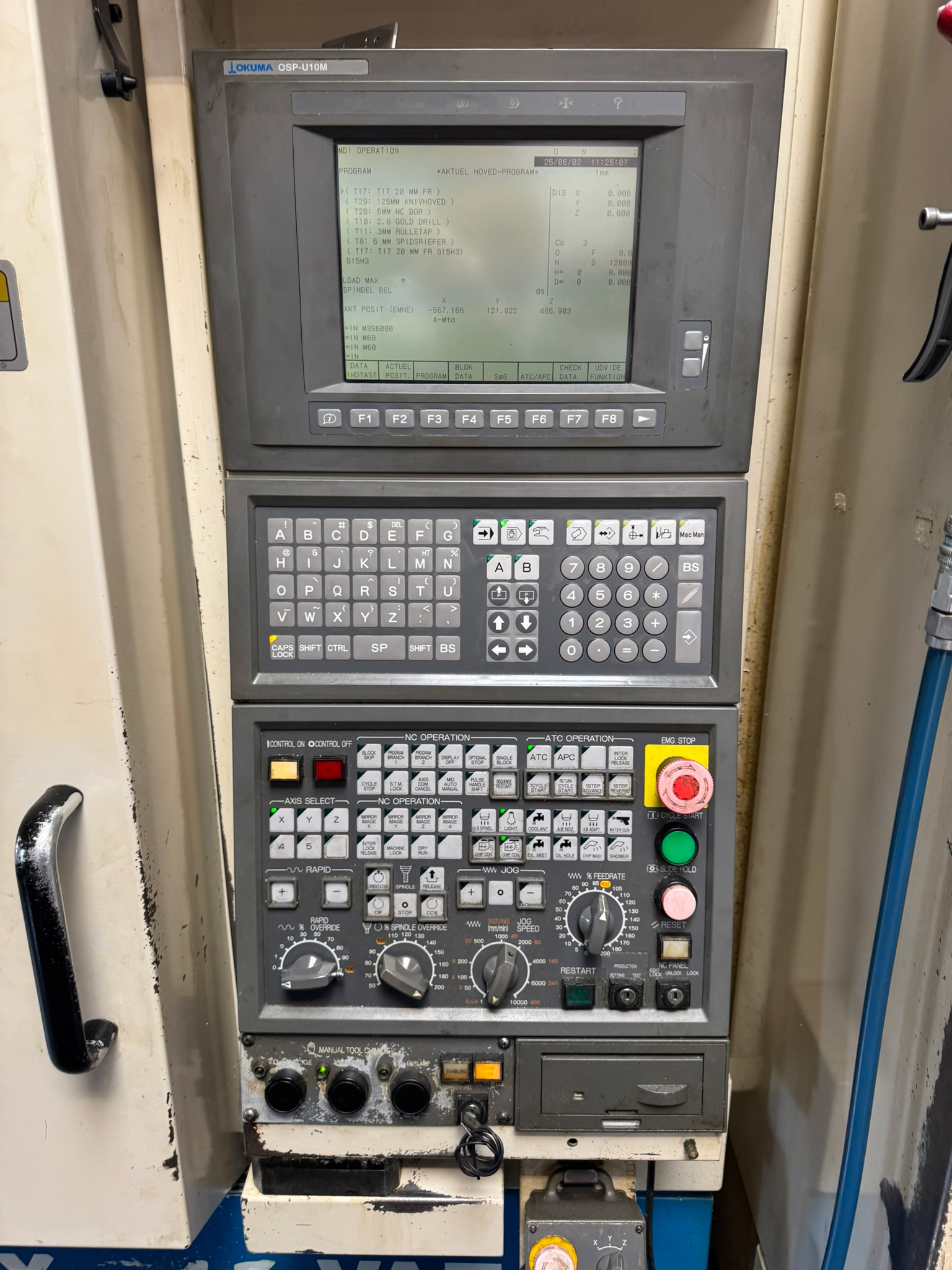

- Control system:
- OSP-U100M manuf.
- Controlled in axis:
- 3
- Pallets:
- 2 pcs.
- Toolchanger ATC:
- 32 pos.

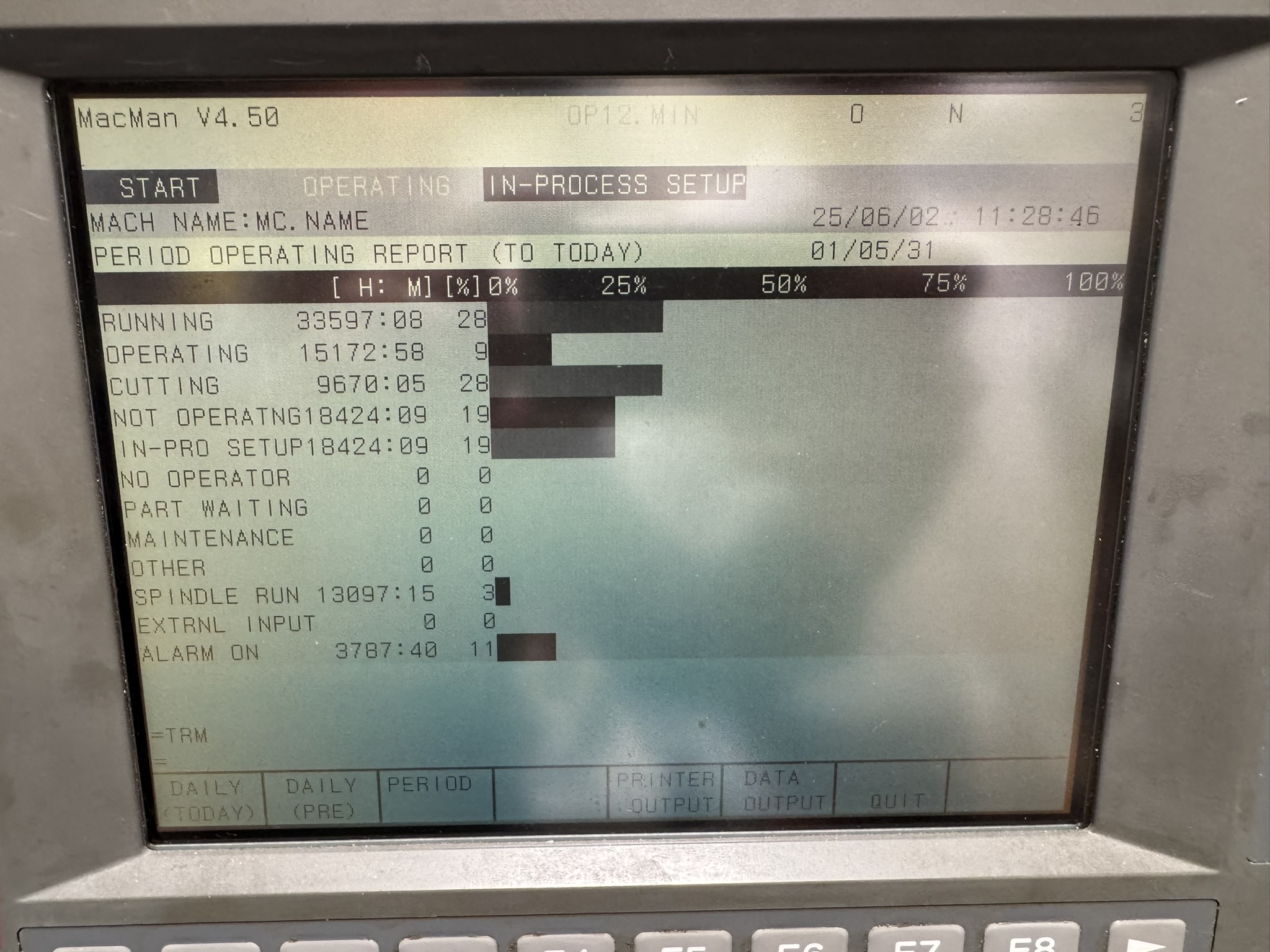

- Spindel Running time:
- 9670 Hours
- Weight:
- 6000 Kg
- Length:
- 1800mm ( 3500mm)
- Width:
- 2500mm
- Height:
- 3000mm
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
