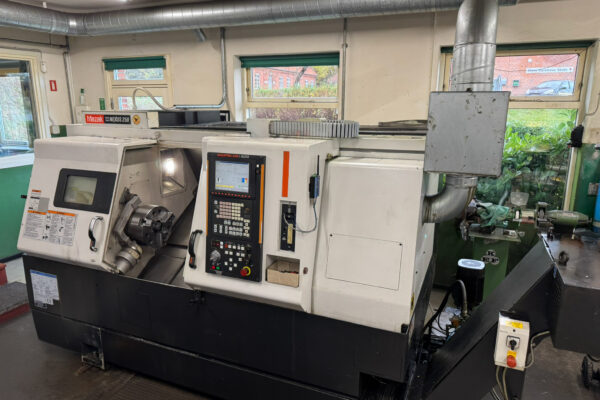

Mazak Quick Turn Smart 200
- Maskingruppe:
- CNC LATHE
- Årgang:
- 2012
- Hydraulic Main centre chuck:
- 200 mm dia.
- Controlled in:
- 2 Axis
- Turning Length:
- 500 mm
- Max. Turning diameter:
- 350 mm dia.
- Max. Turning dia o/slide:
- 660 mm dia.
- Spindle bore:
- 65 mm dia.
- Tool Turret capacity:
- 12 stations
- Main motor power:
- 15 kw
- X Axis Stroke:
- 195 mm
- Z Axis Stroke:
- 560 mm
- Vægt:
- 4410 kg
- Længde:
- 2700mm
- Bredde:
- 1680mm
Youtube
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
