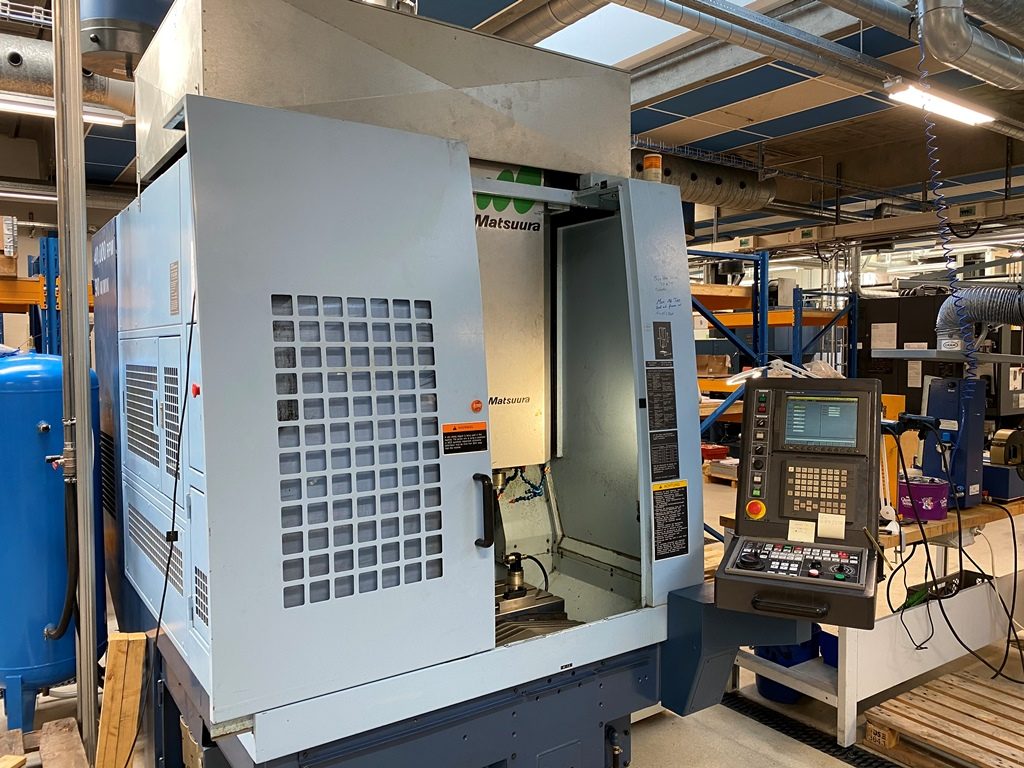

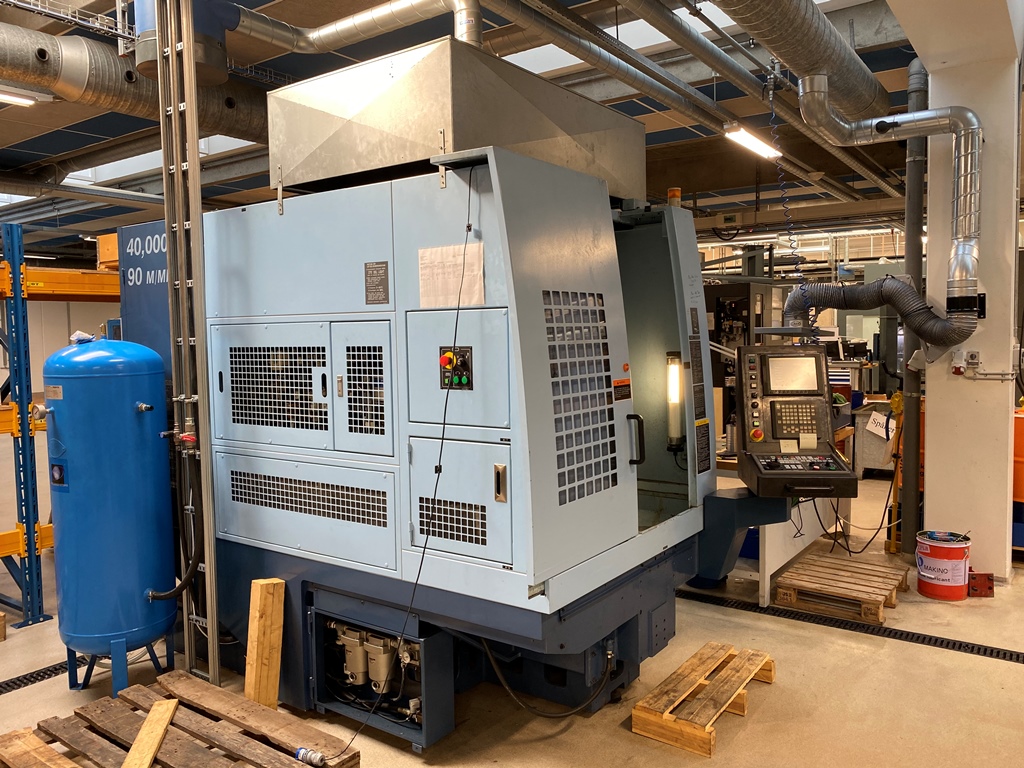

MATSUURA LX-0 – HIGH PRECISION

  • Year:
  • 2002
  • Table Size:
  • 540 x 320 mm mm
  • Spindle speeds:

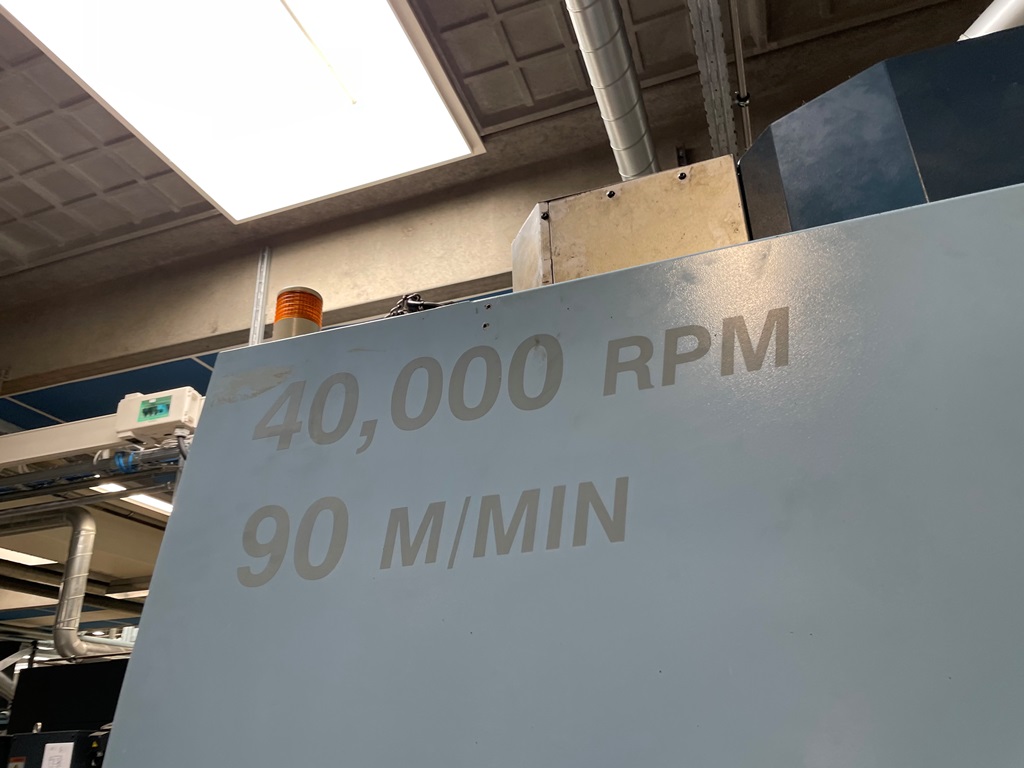

  • 0-40.000 rpm
  • Longitudinal travel (X):
  • 330 mm
  • Cross travel (Y):
  • 300 mm
  • Vertical travel (Z):
  • 250 mm
  • Spindle taper:
  • BT 30 ISO
  • Spindle motor:
  • 2.2 - 3,7 Kw
  • Feeding:
  • 1-90.000 mm/min
  • Rapid feeding:
  • 90 m/min
  • Toolchanger ATC:
  • 50 pos.
  • Total power:
  • 22 KVA
  • Control system:
  • LX0/ Fanuc L-Tech 15I manuf.
  • High Precision Liniare Scales:
  • X/Y/Z - 0.0001 mm
  • Weight:
  • 5000 kg
  • Length:
  • 3110 mm
  • Width:
  • 1500 mm
  • Height:
  • 2550 mm
Price request

Disclaimer

Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.

Price request
