EMCO Hyperturn 645 MC PLUS
- Machine group:
- CNC LATHE
- Year:
- 2005
- Max. Turning dia o/slide:
- 600 mm dia.
- Max. Turning diameter:
- 300 mm dia.
- Y axis :
- +/- 40/30 mm
- Boring trough drawing pipe:
- 45 mm dia.
- C Axis - Mainspindle Stroke:
- 0.001 degree
- C Axis – Sub spindle Stroke:
- 0.001 degree

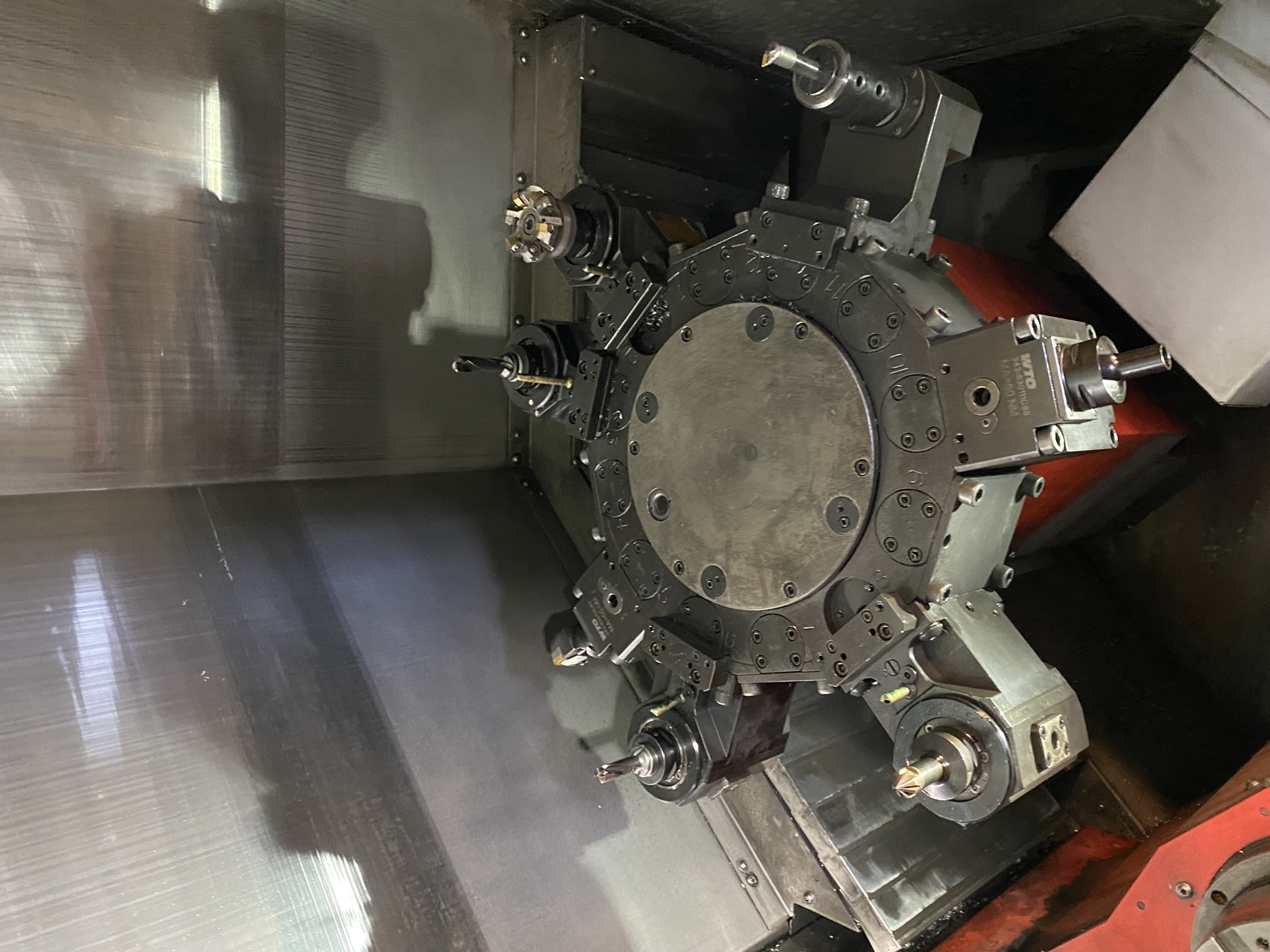

- Turret 1 with :
- 12 Stations
- Turret 2 with:
- 12 Stations
- Max. collet chuck:
- 45 mm dia.
- Dist. between spindels:
- 1000 mm
- Turning Length:
- 744 mm
- Main motor power:
- 17/22 kw kw
- Main Spindle speed Range:
- 5000 rpm
- Sub Spindle Speeds:
- 7000 pr/min
- Live Tooling Spindle speeds:
- 4000 rpm
- Motorpower M spindle:
- 6.7 Kw
- Control system:
- Siemens 840D manuf.
- Working hours Spindle:
- 6303 Hours
- Power on:
- 19981 Hours
- X Axis Stroke:
- 270 mm
- Z Axis Stroke:
- 750 mm
- X2 Axis Movement:
- 205 mm
- Hydraulic Main centre chuck:
- 165 mm 2 jaws mm dia.
- Gantry loader:
- Emco R7AM01 - 2005
- Hydr. Chuck Supspindle :
- 165 mm 2 jaw mm dia
- Live Tools Angle:
- 6 pcs.
- Toolholders:
- 13 Pcs.
