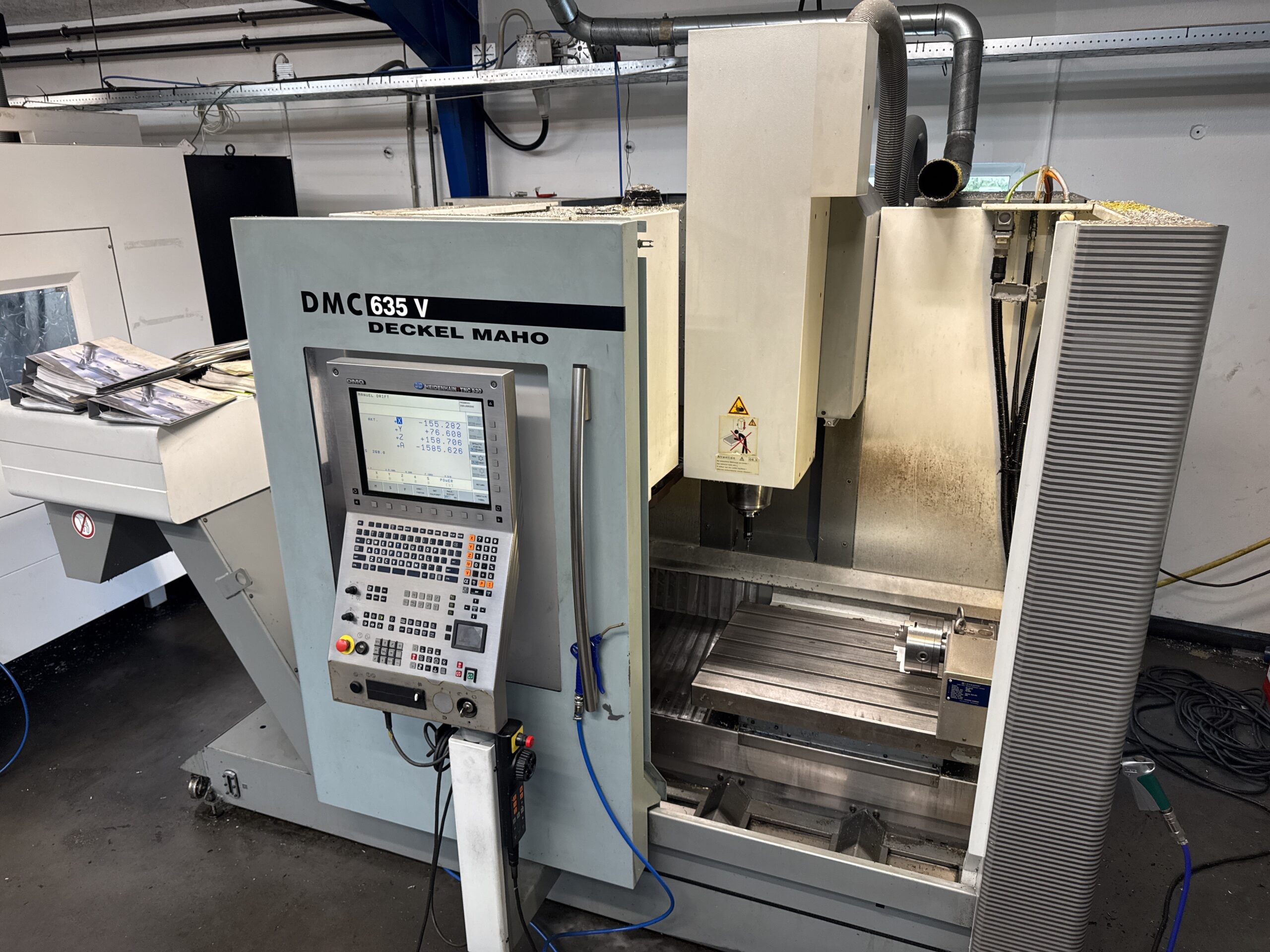

DMG DMC 635 V – 4 axis
- Maskingruppe:
- MACHINING CENTER VMC
- Årgang:
- 2005
- Longitudinal travel (X):
- 635 mm
- Cross travel (Y):
- 510 mm
- Vertical travel (Z):
- 460 mm
- Feeding:
- 2000 mm/min
- Rapid feeding:
- 30 m/min
- Toolchanger ATC:
- 20 pos.

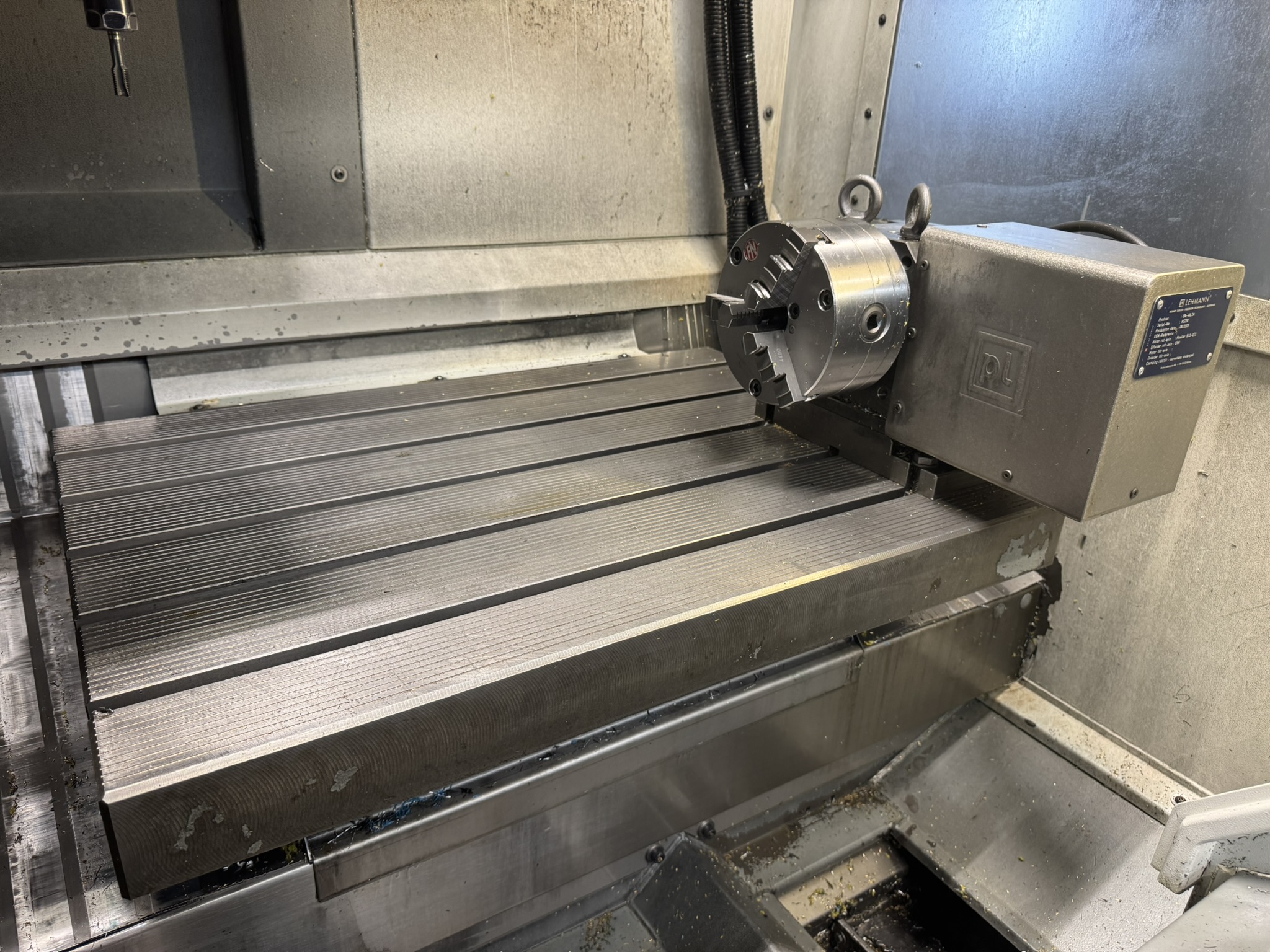

- Table Size:
- 790 x 560 mm
- Control system:
- Heidenhain 530 manuf.

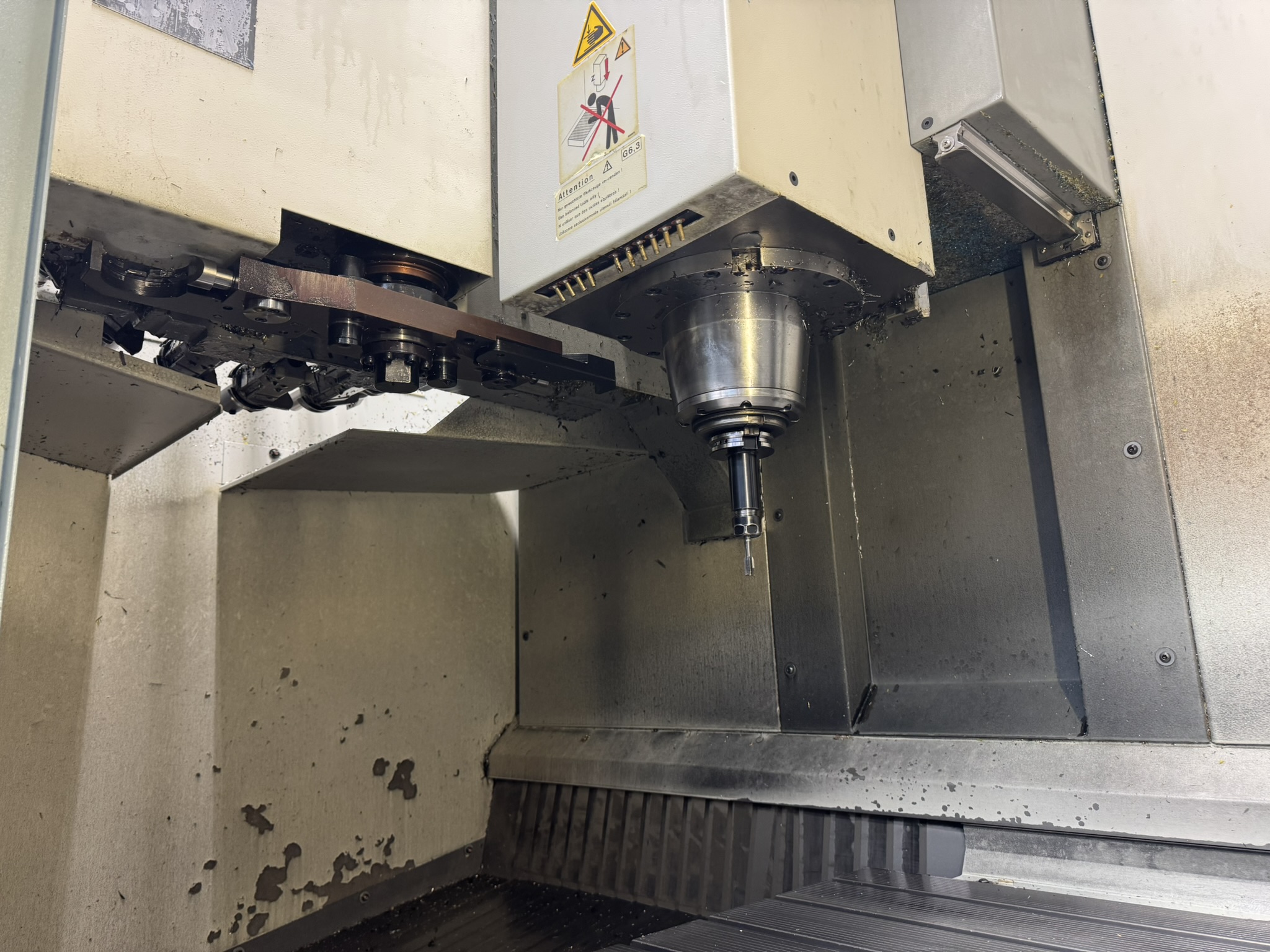

- Spindel Running time:
- 13646 Hours
- Power on:
- 45808 Hours
- A-Axis:
- 360 ( 0.001 degree )
- Tool Holderes:
- 18 pc(s)

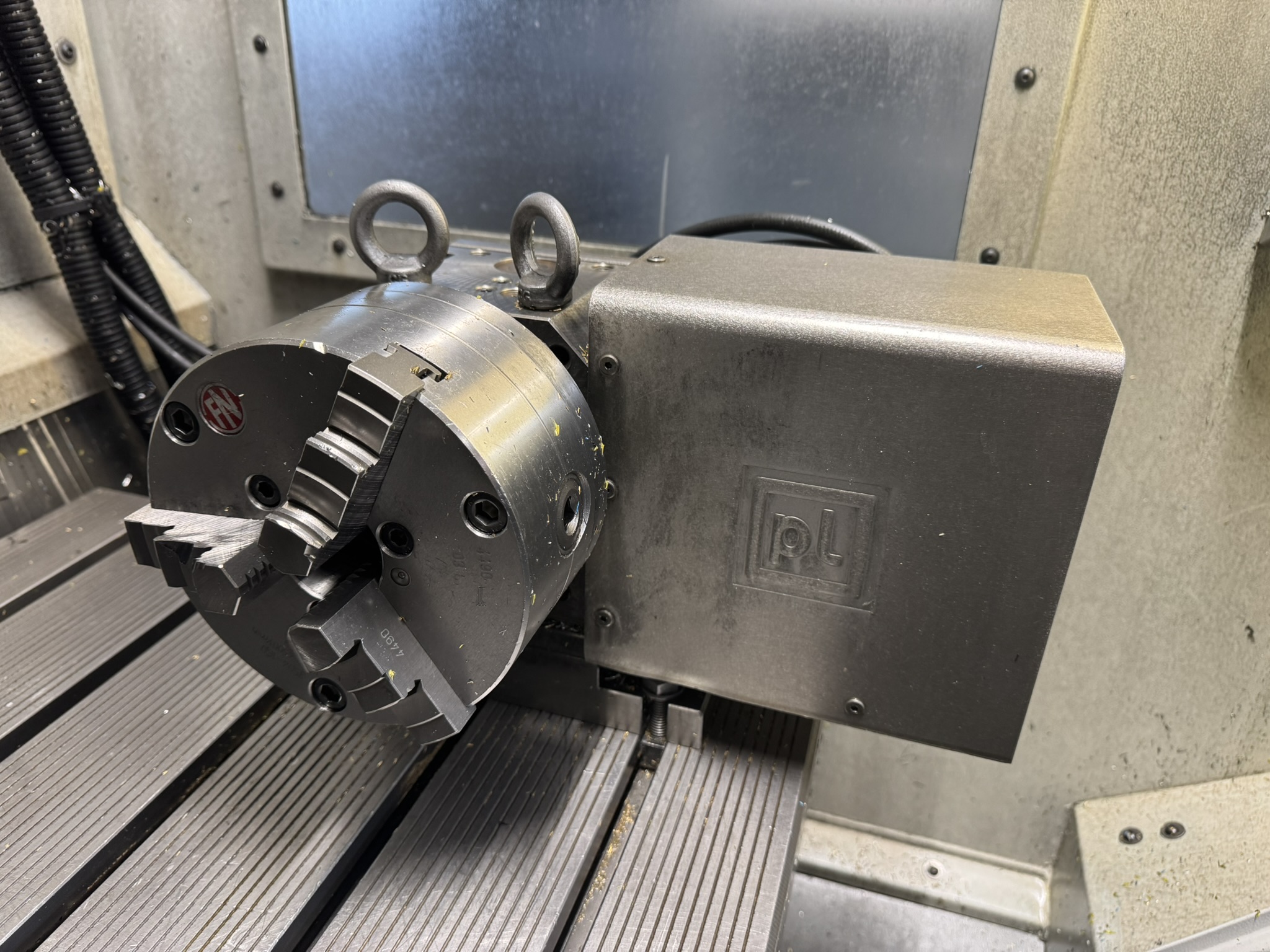

- CNC Rotary table.:
- Lehmann EA-410.2A dia 160 mm center h. 150
- Max. table load:
- 600 kgs
- Total power:
- 20 KVA
- Vægt:
- 4200 kg
- Længde:
- 2500 mm
- Bredde:
- 1850 mm
- Højde:
- 2400 mm
Youtube
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
