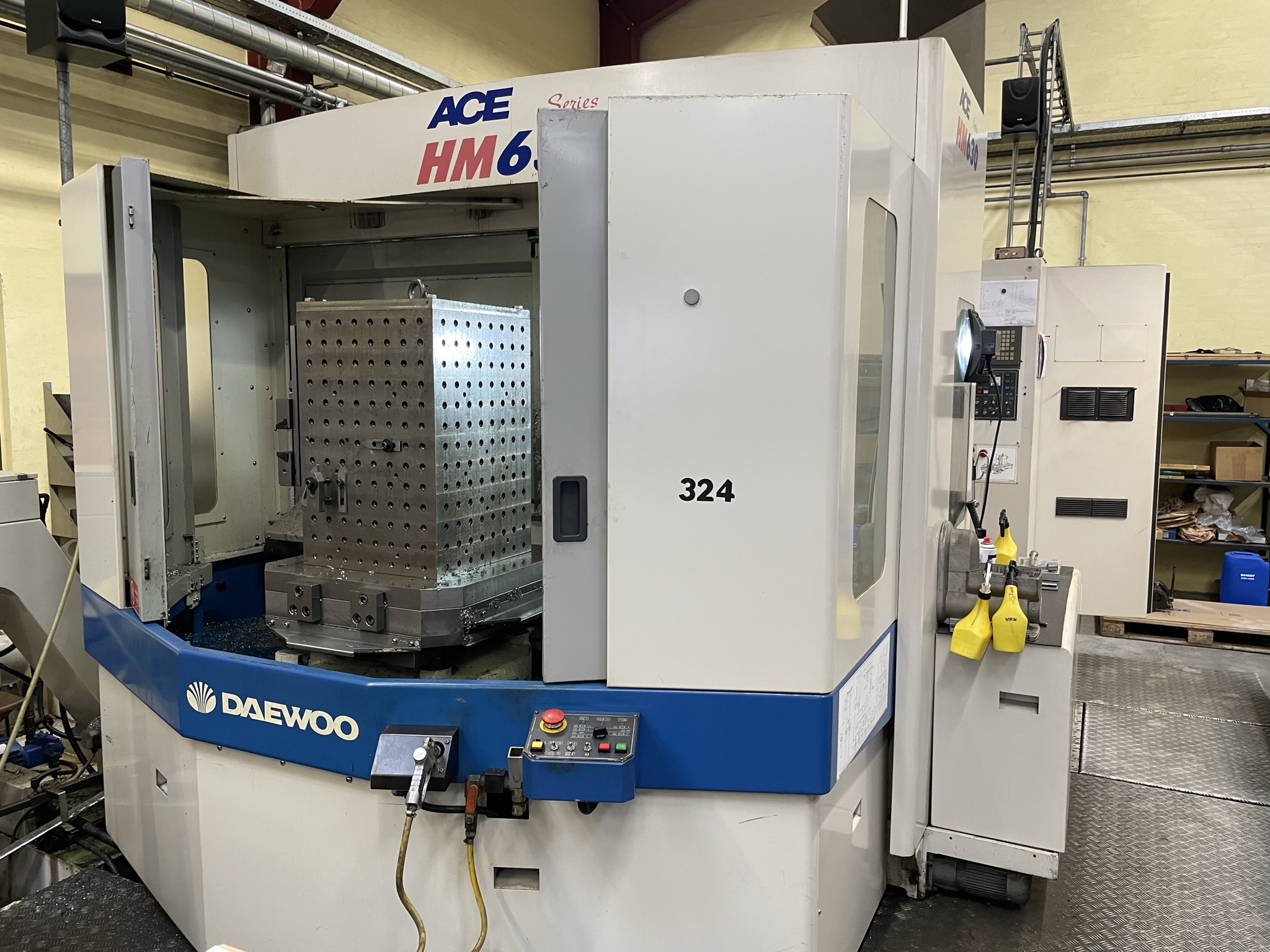

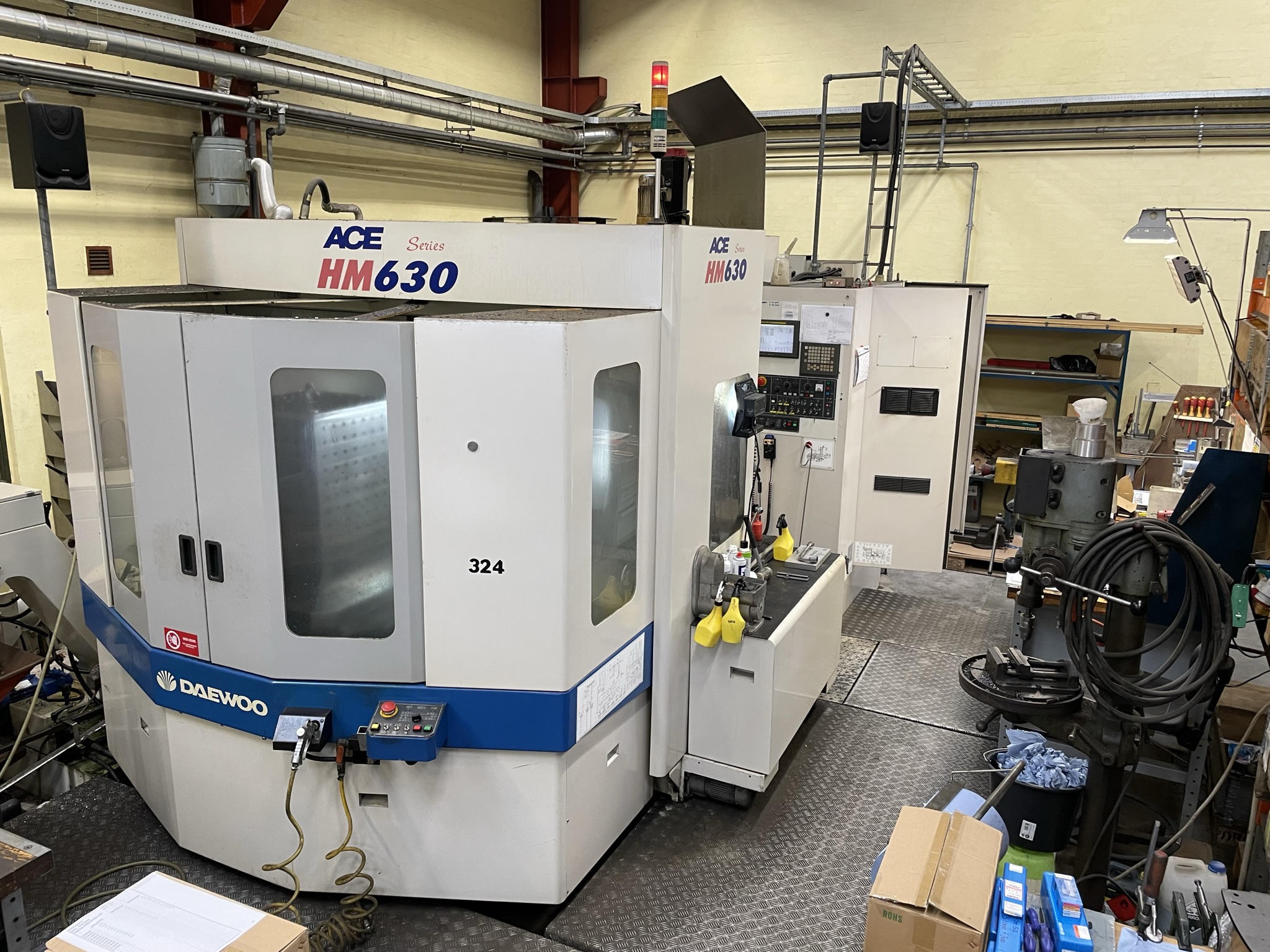

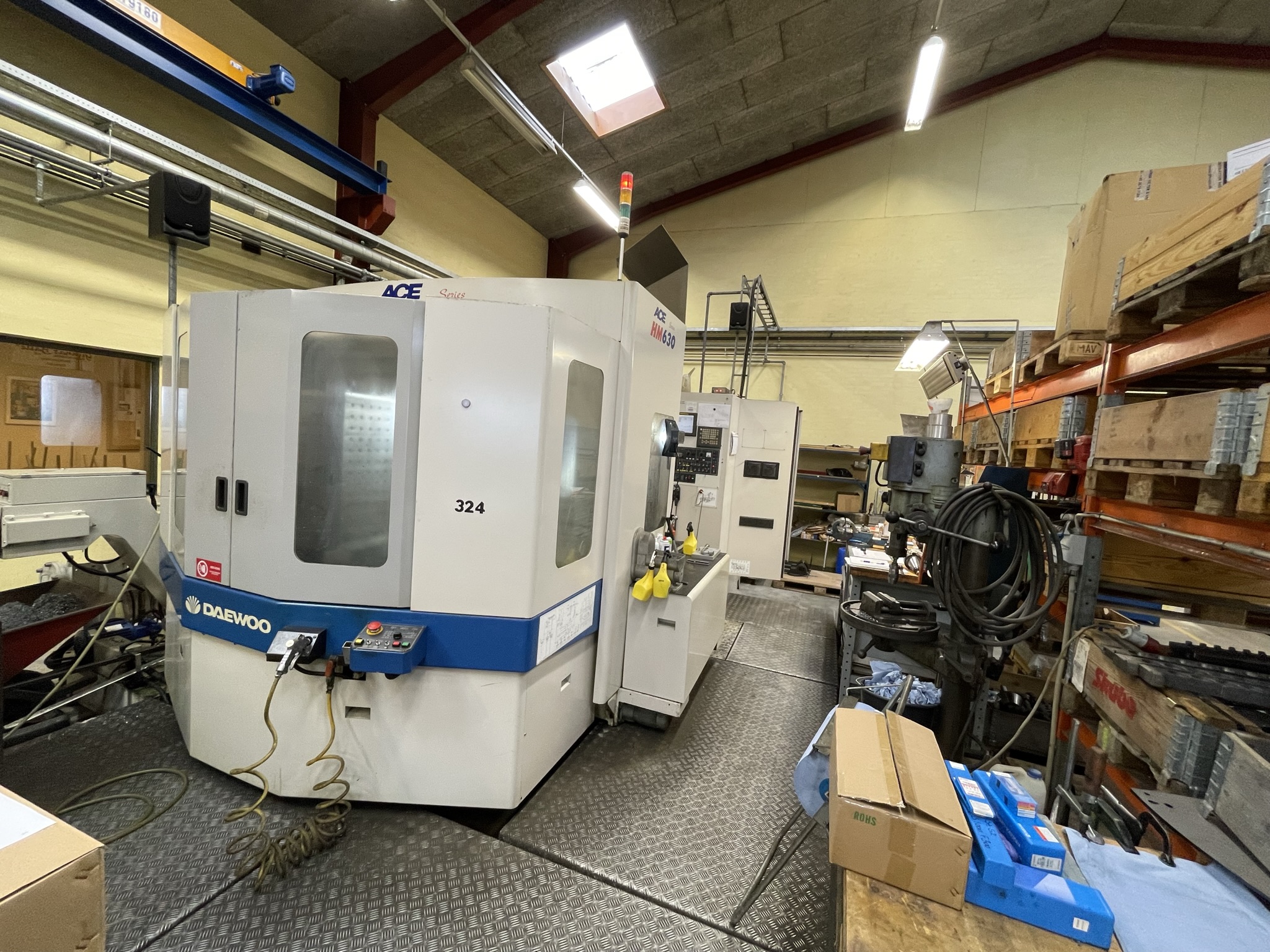

DAEWOO – DOOSAN ACE-HM 630
- Machine group:
- MACHINING CENTER HORIZONTAL CNC
- Year:
- 2001
- No. Pallet:
- 2 No.
- Cross travel (X):
- 1000 mm
- Vertical travel (Y):
- 800 mm
- Longitudinal travel (Z):
- 850 mm
- Max. table load:
- 1600 kgs
- Pallet Size:
- 630 x 630 mm

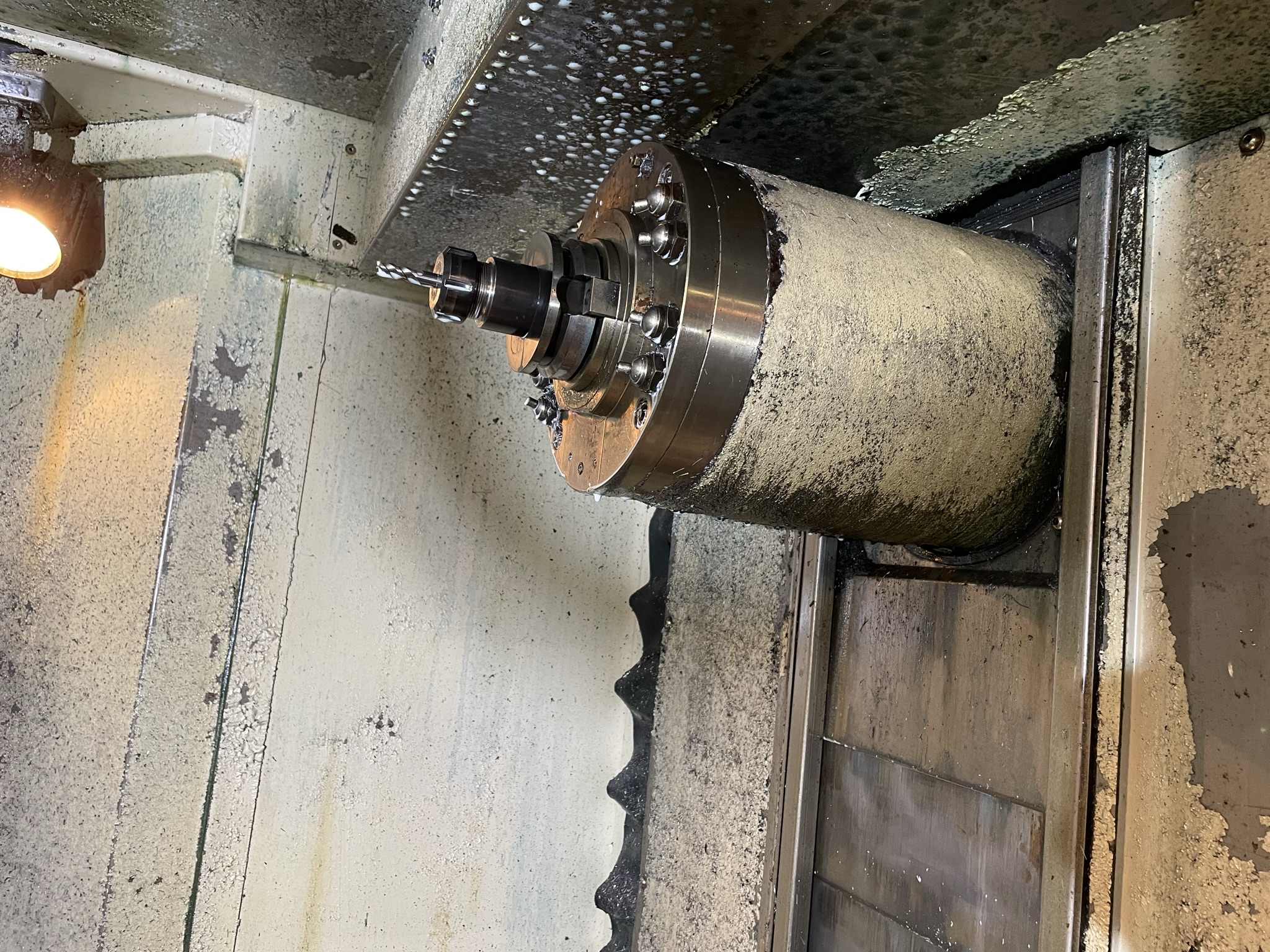

- Spindle speeds:
- 6000 rpm
- Spindle taper:
- Mas 403 BT50 ISO

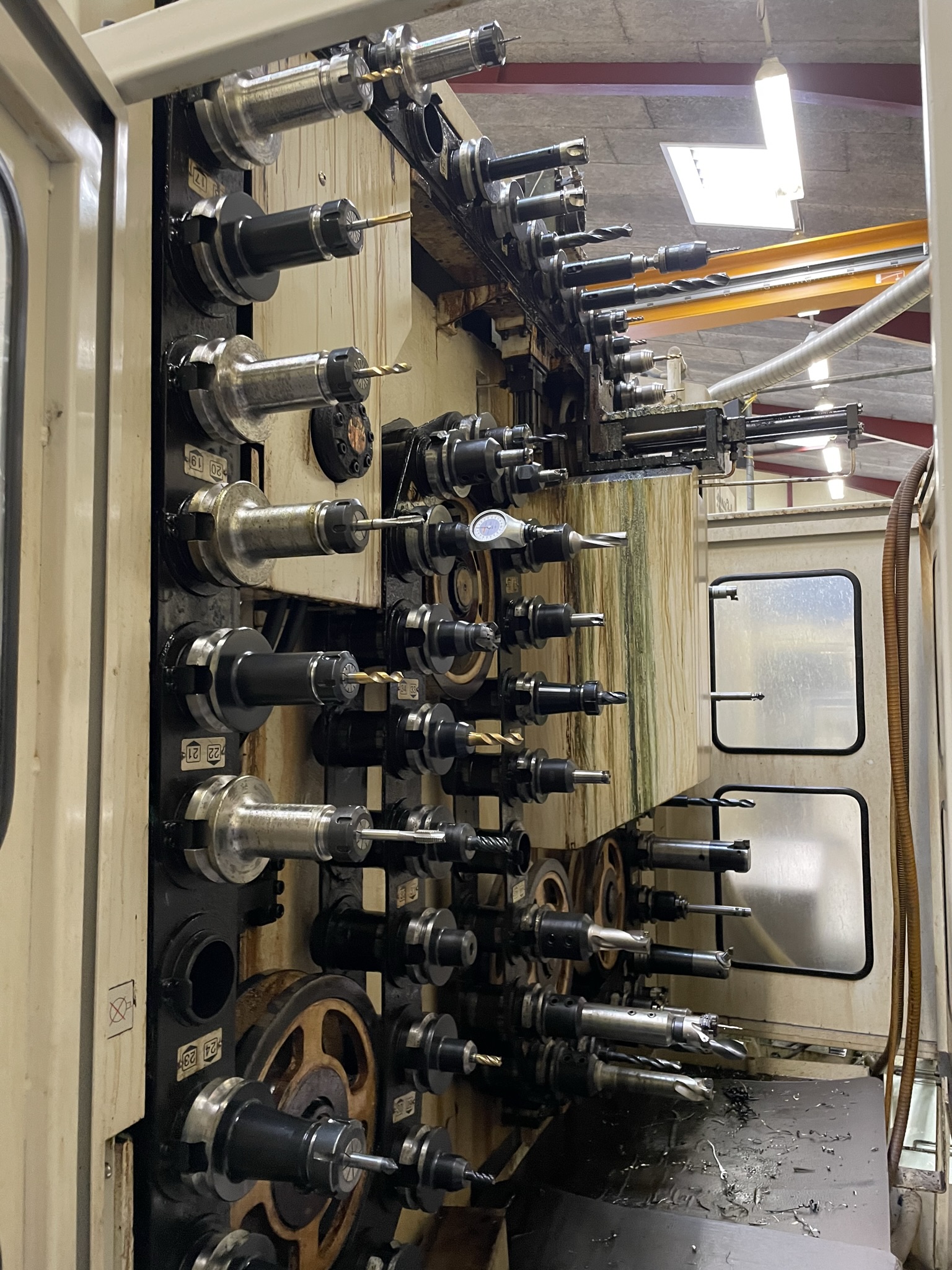

- Tool changer/No. of stations:
- 60
- Main spindle Power:
- 22/26 kw
- Power Consumption:
- 60,7 KVA

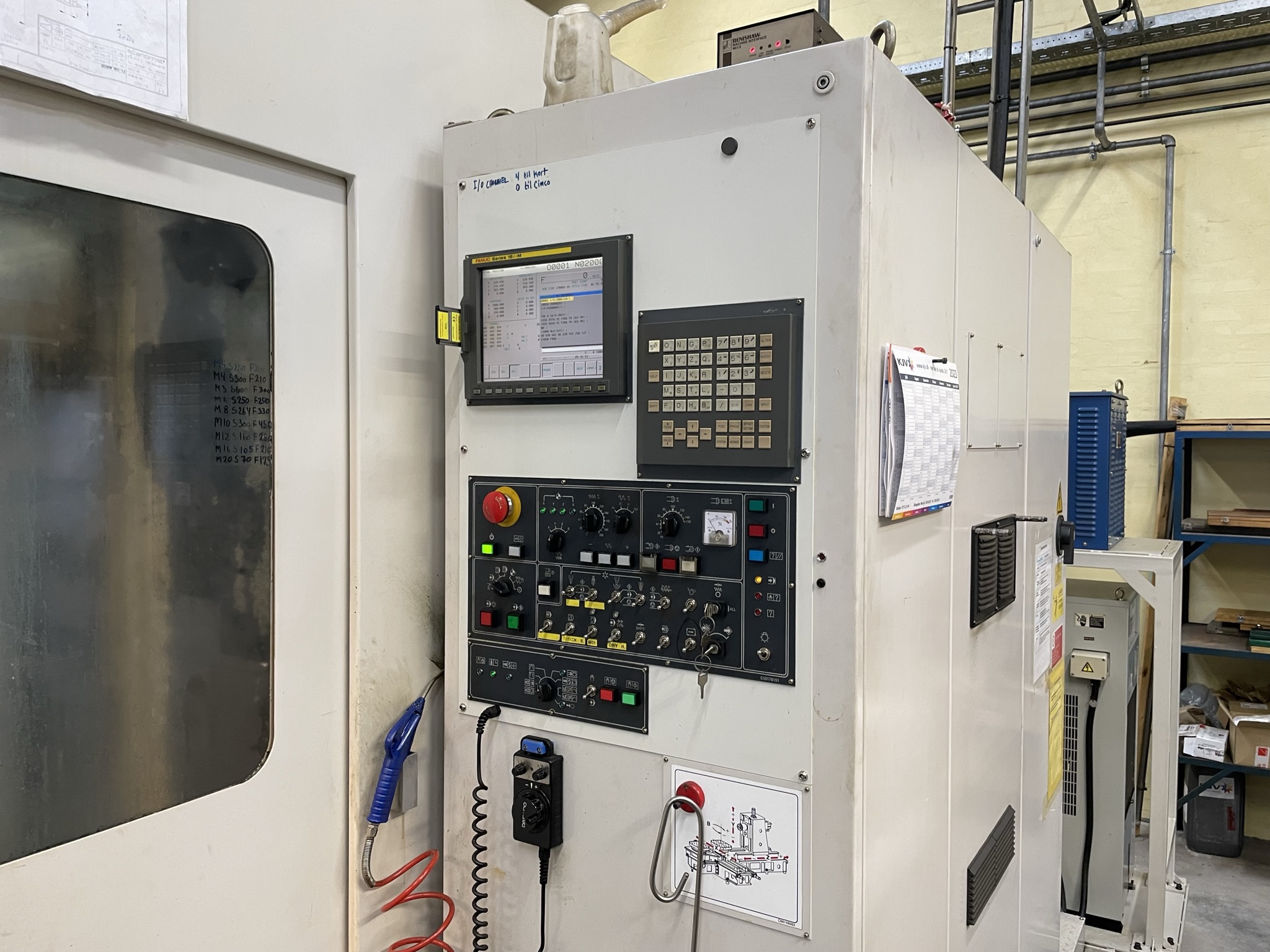

- Control system:
- Fanuc 16i-M manuf.
- Controlled in no. of axis:
- X-Y-Z-B 4 axis

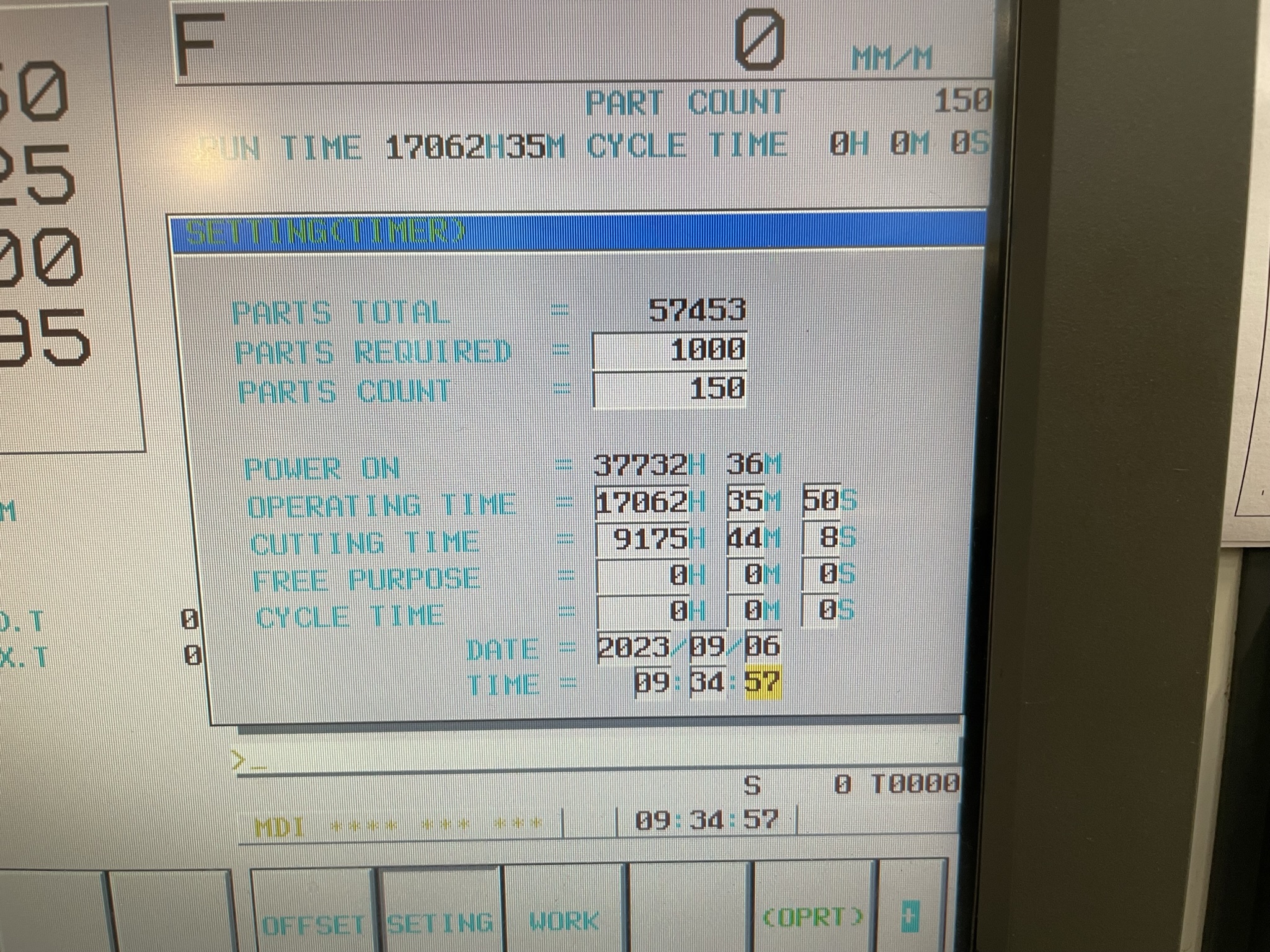

- Cutting Time:
- 9166 - 08.08.2023 Hours
- Measurings System :
- Renishaw MP 10
- Pallet exchangers:
- 2 x 630 mm
- Milling arbors:
- about 60 whitout cutting tools pc(s)
- Angle Plate:
- 2 pc 630 x 660

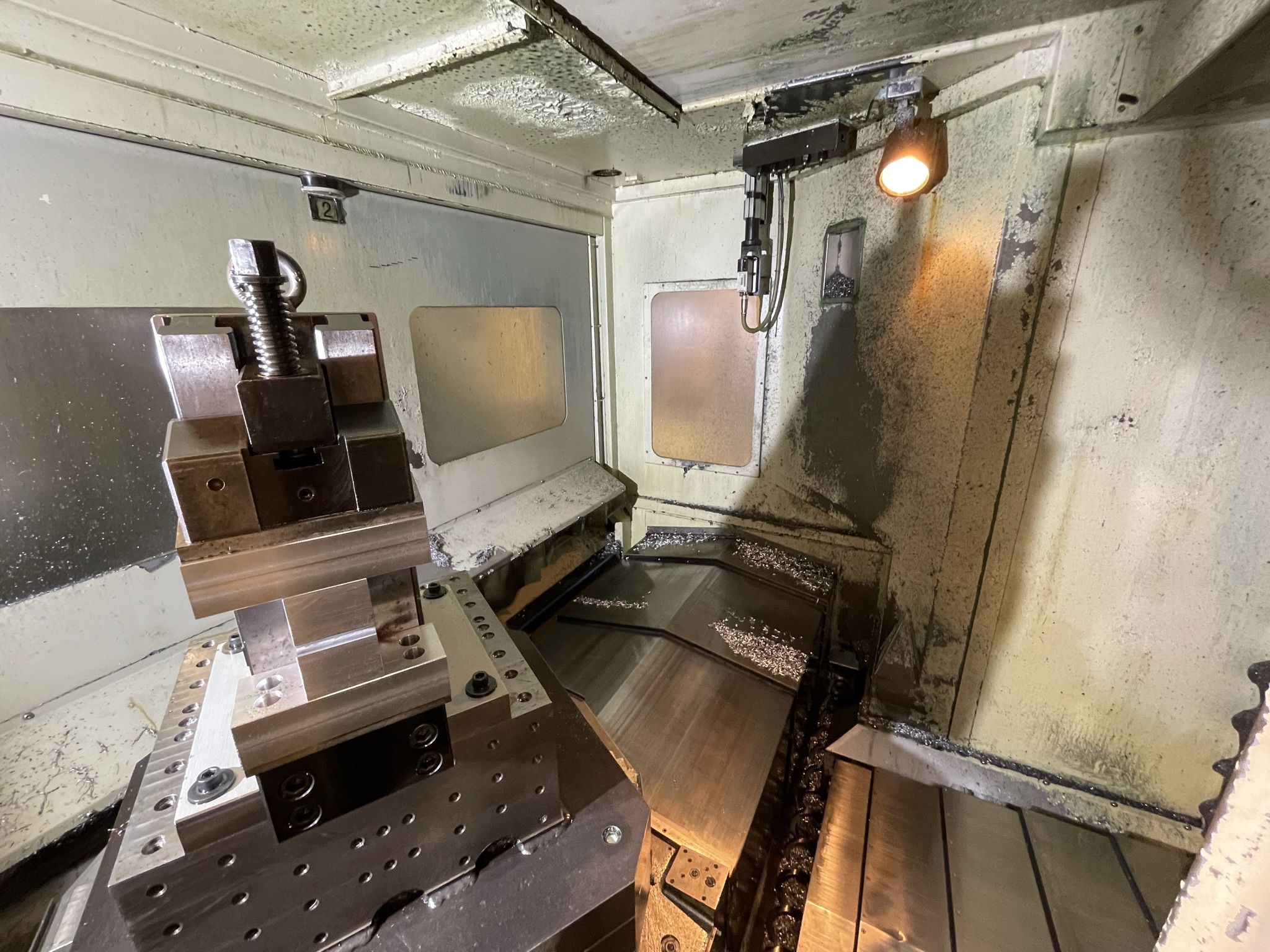

- Cube :
- 2 x 630 x 430 mm
- Weight:
- 18.000 kg
- Length:
- 6485 mm
- Width:
- 3857 mm
- Height:
- 3050 mm
Youtube
Disclaimer
Subject to errors in the above data and intermediate sales. Technical details are delivered in the best way and customers are advised to check all sensitive details. Customers are responsible for ensuring that the machines comply with local safety regulations.
